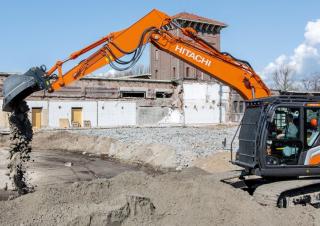

ZX130-7 Hitachi excavator specs & Dimensions (2021 - 2026)

Hitachi ZX130-7 is a crawler excavator manufactured since 2021. It has a weight of 13.6 tons and a track width of 500 mm. The tran…

Hitachi ZX130-7 is a crawler excavator manufactured since 2021. It has a weight of 13.6 tons and a track width of 500 mm. The transport dimensions are 7.71 meters in length, 2.49 meters in width, and 2.87 meters in height. The machine offers a tear-out force of 104 kN, a dredging depth of 6.03 meters, and a maximum horizontal reach of 8.65 meters. The bucket width is 0.8 meters with a capacity of 0.5 cubic meters.

Crawler Excavators Hitachi ZX130-7

Visit Hitachi live at

Technical specs - ZX130-7 Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.6 t
Transport length
7.71 m
Transport width
2.49 m
Transport height
2.87 m
Bucket capacity
0.5 m³
Undercarriage
SL
Track width
500 mm
Boom
MB
Max. Reach horizontal
8.65 m
Dredging depth
6.03 m
Tear-out force
104 kN
Bucket width
0.8 m
Model series
ZAXIS

More technical details, like: bucket capacity min., bucket capacity max., engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hitachi ZX130-7 FAQ

When was the Hitachi ZX130-7 manufactured?

The Hitachi ZX130-7 was first produced in 2021.

How much does the Hitachi ZX130-7 weigh?

The Hitachi ZX130-7 weighs 13.6 tons.

What are the transport dimensions of the Hitachi ZX130-7 crawler excavator?

The Hitachi ZX130-7 has a transport length of 7.71 meters, a transport width of 2.49 meters, and a transport height of 2.87 meters.

What are the undercarriage specifications of the Hitachi ZX130-7?

The Hitachi ZX130-7 has a standard undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the Hitachi ZX130-7?

The Hitachi ZX130-7 has a dredging depth of 6.03 meters, a maximum horizontal reach of 8.65 meters, and features a monobloc boom.

What is the tear-out force of the Hitachi ZX130-7?

The Hitachi ZX130-7 has a tear-out force of 104 kN.

What are the specifications of the primary work tool bucket on the Hitachi ZX130-7?

The primary work tool bucket of the Hitachi ZX130-7 has a capacity of 0.5 cubic meters and a width of 0.8 meters.

How much is a Hitachi ZX130-7 Crawler excavator (2021u20132025) worth?

The residual value of the Hitachi ZX130-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Hitachi ZX130-7 overview

Hitachi ZX130-7 features overview

You're in control

You’re at the heart of Hitachi’s design for its latest range of excavators. To continuously improve on previous generation machines we’ve focused on enhancing your experience in the cab as an operator. We’ve considered the challenges you face as the owner of a successful business. We’ve zoomed in on the ways in which we can support you over the life cycle of your machine. By putting you at the heart of the Zaxis-7 range, we invite you to take control – over your workspace and your fleet. By working in partnership, we will help you to create your vision.


Complete control

The new Zaxis-7 range of medium excavators puts you firmly in control, so you can feel assured of your machine’s performance, and supported by the technological expertise and services that Hitachi provides.


Increase your safety

Your ability to work safely is vital, not only for your own wellbeing, but also for the successful completion of any project. To protect yourself and your machine from potential hazards, the new Hitachi Zaxis-7 excavators give you a superior view of your surroundings, so you can see the job site from all angles. The visibility you enjoy from the cab includes an exceptional 270-degree bird’s-eye view with the Aerial Angle camera system. You can choose from six image options to view the machine’s immediate environment, which enables you to control your own safety – as well as that of those around you. To help you to work more confidently and efficiently, even in the most challenging of conditions, Zaxis-7 excavators are fitted with some impressive new features. From the LED work lights and the windscreen wiper with an increased sweeping area, to the large reflective strips on the counterweight and optional roller sunshades, you’ll have the visibility you need when it matters most. Attention to detail is also fundamental to a safe working environment – the repositioning of the pilot shutoff lever is a perfect example, as it is now within easy reach to prevent any unintentional actions.


Engine

Ground engaging tools

You can enhance the digging power and productivity of your excavator with Hitachi GET. Quick and safe to install and replace, they fit precisely to your attachments and can be tailored to suit the task. Using Hitachi GET can reduce your maintenance costs and downtime, lower fuel consumption and enhance the overall performance of your machine.


Breakers

High-performance hydraulic breakers – approved by Hitachi – are perfectly suited to medium excavators. They are easy to maintain and user-friendly, and their high-quality materials ensure a long lifetime. This means reduced maintenance costs, fewer replacement parts and minimal downtime.


Cab

Control zone

Enhanced comfort and safety features are at your fingertips in the refined cab of Zaxis-7 excavators, giving you the power to perform productively, with ease and reduced fatigue.
