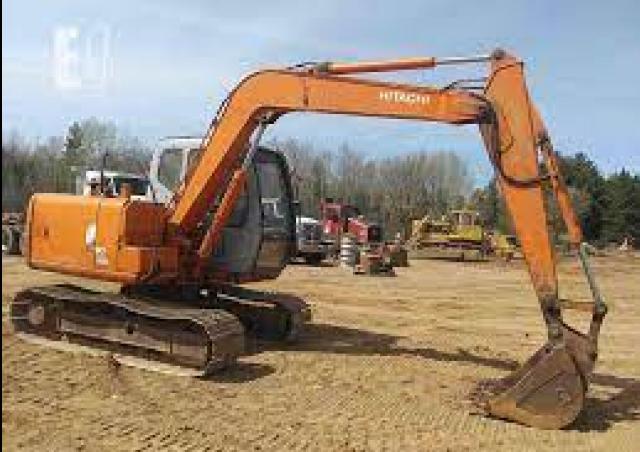

EX80 Hitachi excavator specs & Dimensions (2000 - 2026)

Hitachi EX80 is a Crawler Excavator manufactured since 2000, with a weight of 6.4 tons. It features a track width of 450 mm, a tra…

Hitachi EX80 is a Crawler Excavator manufactured since 2000, with a weight of 6.4 tons. It features a track width of 450 mm, a transport length of 6.12 meters, a transport width of 2.34 meters, and a transport height of 2.57 meters. The machine has a tear-out force of 54.9 kN, a dredging depth of 4.66 meters, and a maximum horizontal reach of 6.66 meters. The bucket width is 0.86 meters, and the bucket capacity is 0.34 cubic meters.

Crawler Excavators Hitachi EX80

Visit Hitachi live at

Technical specs - EX80 Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.4 t
Transport length
6.12 m
Transport width
2.34 m
Transport height
2.57 m
Bucket capacity
0.34 m³
Track width
450 mm
Max. Reach horizontal
6.66 m
Dredging depth
4.66 m
Tear-out force
54.9 kN
Bucket width
0.86 m
Engine manuf.
Nissan
Engine type
A-BD30
Engine power
40 kW
Displacement
2.953 l
Revolutions at max torque
2200 rpm
Cylinder bore x stroke
96x102 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, model series, dimension lxwxh, max. torque, no. of cylinders, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hitachi EX80 FAQ

When was the Hitachi EX80 manufactured?

The Hitachi EX80 was first produced in 2000.

How much does the Hitachi EX80 weigh?

The Hitachi EX80 weighs 6.4 tons.

What are the transport dimensions of the Hitachi EX80 crawler excavator?

The Hitachi EX80 crawler excavator has a transport length of 6.12 meters, a transport width of 2.34 meters, and a transport height of 2.57 meters.

What is the track width of the Hitachi EX80's undercarriage?

The Hitachi EX80 has a track width of 450 mm.

What are the dredging depth and maximum horizontal reach of the Hitachi EX80?

The Hitachi EX80 has a dredging depth of 4.66 meters and a maximum horizontal reach of 6.66 meters.

What is the tear-out force of the Hitachi EX80?

The Hitachi EX80 has a tear-out force of 54.9 kN.

What are the specifications of the primary work tool bucket on the Hitachi EX80?

The primary work tool bucket of the Hitachi EX80 has a capacity of 0.34 cubic meters and a width of 0.86 meters.

How much is a Hitachi EX80 Crawler excavator (2000u20132025) worth?

The residual value of the Hitachi EX80 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
