EX2600E-6 Hitachi excavator specs & Dimensions (2023 - 2026)

Weight: 250t – Transport width: 8.04m – Bucket capacity: 16.5m³ – Bucket capacity min.: 15m³ – Bucket capacity max.: 17m³ – Track …

Weight: 250t – Transport width: 8.04m – Bucket capacity: 16.5m³ – Bucket capacity min.: 15m³ – Bucket capacity max.: 17m³ – Track width: 1000mm

Check out detailed specifications, information and technical data for Hitachi EX2600E-6 excavator manufactured between 2023 - 2026. Get more in-depth insight with Hitachi EX2600E-6 digger specifications. See information, like: Weight: 250t – Transport width: 8.04m – Bucket capacity: 16.5m³ – Bucket capacity min.: 15m³ – Bucket capacity max.: 17m³ – Track width: 1000mm and more.

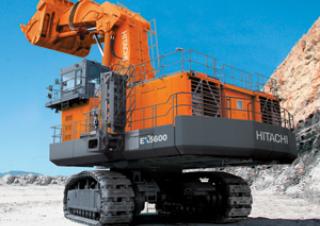

Crawler Excavators Hitachi EX2600E-6

Visit Hitachi live at

Technical specs - EX2600E-6 Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
250 t
Transport width
8.04 m
Bucket capacity
16.5 m³
Bucket capacity min.
15 m³
Bucket capacity max.
17 m³
Track width
1000 mm
Max. Reach horizontal
14.3 m
Dredging depth
3.96 m
Tear-out force
1330 kN
Bucket width
2.15 m
Model series
EX
Engine manuf.
Hitachi
Engine type
TFOA-KK
Engine power
860 kW
Revolutions at max torque
1800 rpm

More technical details, like: transport length, transport height, undercarriage, boom, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hitachi EX2600E-6 FAQ

When was the Hitachi EX2600E-6 manufactured?

The Hitachi EX2600E-6 was first produced in 2023.

How much does the Hitachi EX2600E-6 weigh?

The Hitachi EX2600E-6 weighs 250 tons.

What is the transport width of the Hitachi EX2600E-6?

The transport width of the Hitachi EX2600E-6 is 8.04 meters.

What is the track width of the Hitachi EX2600E-6's undercarriage?

The Hitachi EX2600E-6 has a track width of 1000 mm on its undercarriage.

What are the excavation performance specifications of the Hitachi EX2600E-6?

The Hitachi EX2600E-6 has a dredging depth of 3.96 meters and a maximum horizontal reach of 14.3 meters.

What is the tear-out force of the Hitachi EX2600E-6?

The Hitachi EX2600E-6 has a tear-out force of 1330 kN.

What are the specifications of the bucket on the Hitachi EX2600E-6 crawler excavator?

The Hitachi EX2600E-6 has a bucket with a capacity ranging from 15 to 17 cubic meters, a standard capacity of 16.5 cubic meters, and a width of 2.15 meters.

How much is a Hitachi EX2600E-6 Crawler excavator (2023u20132025) worth?

The residual value of the Hitachi EX2600E-6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
