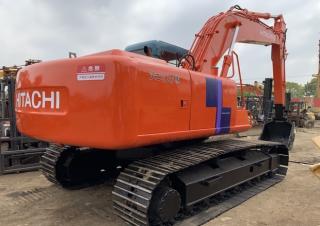

EX200 Hitachi excavator specs & Dimensions (2021 - 2026)

Hitachi EX200 is a crawler excavator manufactured since 2021. It has a weight of 20.1 tons and a track width of 500 mm. The transp…

Hitachi EX200 is a crawler excavator manufactured since 2021. It has a weight of 20.1 tons and a track width of 500 mm. The transport dimensions are 9.72 meters in length, 2.89 meters in width, and 2.85 meters in height. The maximum horizontal reach is 10 meters. The bucket width is 1.78 meters, with a bucket capacity ranging from 0.86 cubic meters to 1.5 cubic meters.

Crawler Excavators Hitachi EX200

Visit Hitachi live at

Technical specs - EX200 Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.1 t
Transport length
9.72 m
Transport width
2.89 m
Transport height
2.85 m
Bucket capacity min.
0.86 m³
Bucket capacity max.
1.5 m³
Track width
500 mm
Max. Reach horizontal
10 m
Bucket width
1.78 m
Model series
EX
Engine manuf.
Cummins
Engine type
6BT5.9C
Engine power
97.7 kW
Revolutions at max torque
1300 rpm
No. of cylinders
6

More technical details, like: bucket capacity, undercarriage, boom, dredging depth, tear-out force, dimension lxwxh, displacement, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hitachi EX200 FAQ

When was the Hitachi EX200 manufactured?

The Hitachi EX200 was first produced in 2021.

How much does the Hitachi EX200 weigh?

The Hitachi EX200 weighs 20.1 tons.

What are the transport dimensions of the Hitachi EX200 crawler excavator?

The Hitachi EX200 has a transport length of 9.72 meters, a transport width of 2.89 meters, and a transport height of 2.85 meters.

What is the track width of the Hitachi EX200's undercarriage?

The Hitachi EX200 has a track width of 500 mm on its undercarriage.

What is the maximum horizontal reach of the Hitachi EX200 during excavation?

The Hitachi EX200 has a maximum horizontal reach of 10 meters during excavation.

What are the specifications of the primary work tool bucket on the Hitachi EX200?

The primary work tool bucket on the Hitachi EX200 has a maximum capacity of 1.5 cubic meters, a minimum capacity of 0.86 cubic meters, and a width of 1.78 meters.

How much is a Hitachi EX200 Crawler excavator (2021u20132025) worth?

The residual value of the Hitachi EX200 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
