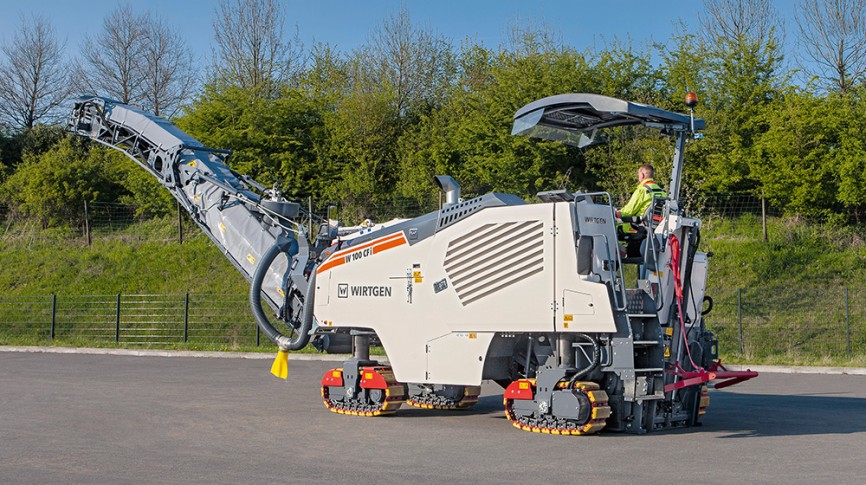

W 120 CF Wirtgen W 120 CF Specifications & Technical Data (2015—2021)

Weight: 18.7t – Track width: 260mm – Standard tyres: 660x280 – Cutting width: 1200mm – Cutting depth: 330mm – Operating speed: 43m/min

Cold Milling Machines Wirtgen W 120 CF
Cold Milling Machines Wirtgen W 120 CF
Cold Milling Machines Wirtgen W 120 CF
Cold Milling Machines Wirtgen W 120 CF
Cold Milling Machines Wirtgen W 120 CF
Cold Milling Machines Wirtgen W 120 CF
Cold Milling Machines Wirtgen W 120 CF
Cold Milling Machines Wirtgen W 120 CF

Visit Wirtgen live at

Technical specs - W 120 CF Wirtgen

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
18.7 t
Track width
260 mm
Standard tyres
660x280
Cutting width
1200 mm
Cutting depth
330 mm
Operating speed
43 m/min
Travel speed
7.5 km/h
Transport length
6.35 m
Transport width
2.66 m
Transport height
3.75 m
Model series
Compact milling machines
Engine manuf.
Cummins
Engine type
QSL9
Engine power
261 kW
Displacement
8.9 l
Emission level
Euro III a/US Tier 3

More technical details, like: turning radius outside, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with cutting tools

Special equipment

Diesel particulate filter
No
Cabin
No
Front loading conveyor
Yes
Infrared heater
No
Aircondition
No

Download datasheets (PDF)
