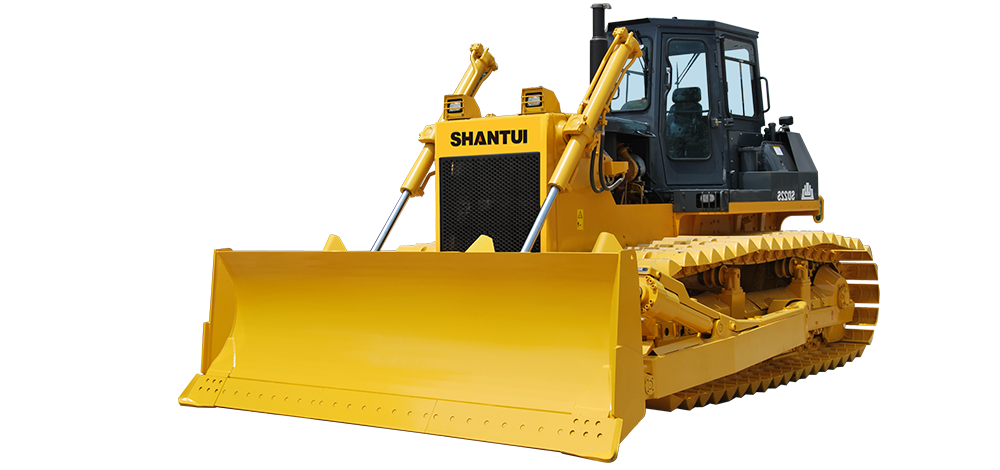

SD26S Shantui SD26S Specifications & Technical Data (2025—2026)

Weight: 25.7t – Transport length: 6.257m – Transport width: 3.8m – Transport height: 3.402m – Blade type: B – Track width: 910mm

Bulldozers Shantui SD26S

Technical specs - SD26S Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
25.7 t
Transport length
6.257 m
Transport width
3.8 m
Transport height
3.402 m
Blade type
B
Track width
910 mm
Travel speed
11.8 km/h
Reverse travel speed
13.9 km/h
Front blade width
4.365 m
Model series
MEDIUM
Engine manuf.
Weichai
Engine type
WP12
Engine power
206 kW
Displacement
11.596 l
Revolutions at max torque
1300 rpm
Max. torque
1250 Nm
Cylinder bore x stroke
126x152 mm
Emission level
China III

More technical details, like: soil pressure, transmission type, max. drawbar pull, dimension lxwxh, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin and corresponding blade

Special equipment

Diesel particulate filter
No
Rear ripper
No
Tilt device
No
Aircondition
No
