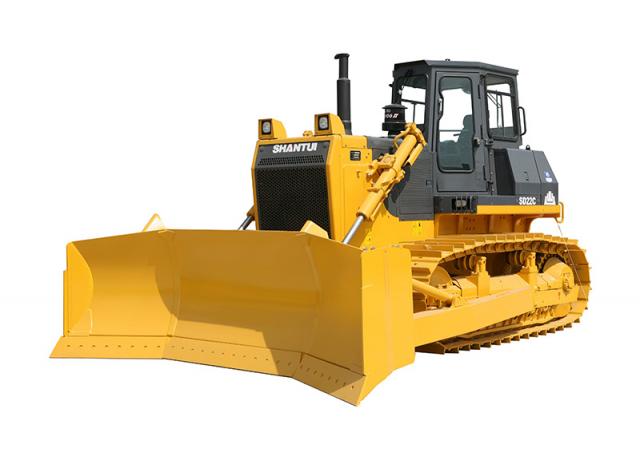

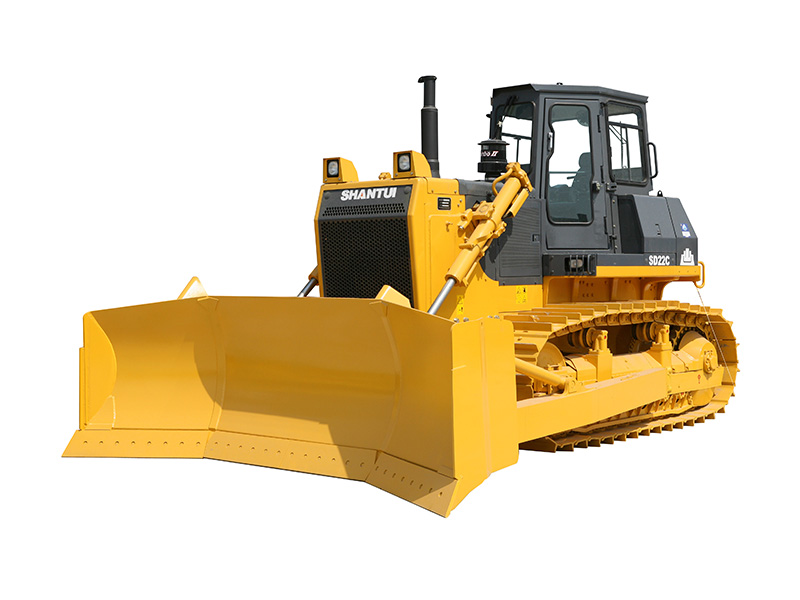

SD22C Shantui SD22C Specifications & Technical Data (2018—2026)
Technical specs - SD22C Shantui
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 24 t
- Transport length
- 6.06 m
- Transport width
- 4.2 m
- Transport height
- 3.745 m
- Blade type
- B
- Soil pressure
- 7.85 kg/cm²
- Track width
- 560 mm
- Travel speed
- 11.2 km/h
- Front blade width
- 3.725 m
- Model series
- LARGE
- Engine manuf.
- Cummins
- Engine type
- NT855-C280S10
- Engine power
- 162 kW
- Displacement
- 14.01 l
- Revolutions at max torque
- 1800 rpm
- Max. torque
- 1030 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 139.7x152.4 mm
More technical details, like: reverse travel speed, transmission type, max. drawbar pull, dimension lxwxh, emission level are available in the full technical specs.
Basic model with ROPS cabin and corresponding blade
Special equipment
- Diesel particulate filter
-
No
- Rear ripper
-
No
- Tilt device
-
No
- Aircondition
-
No
