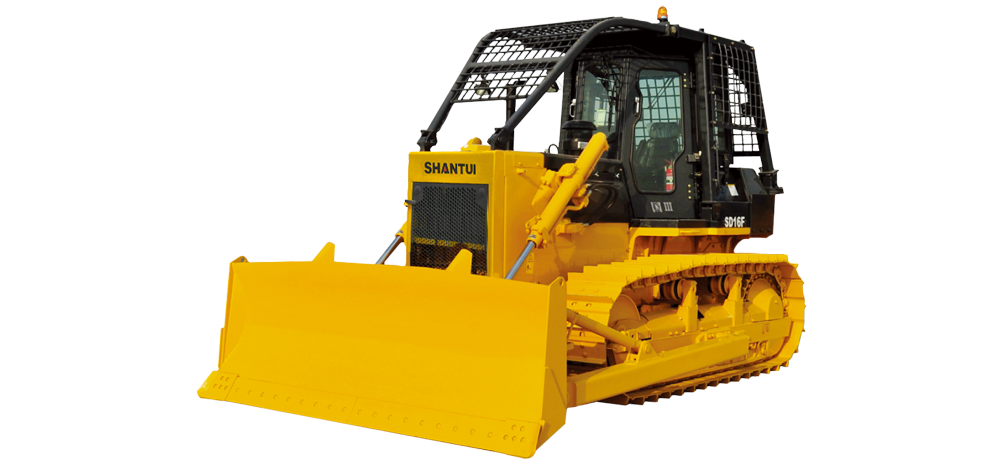

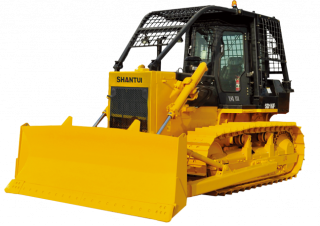

Shantui SD16F
- Weight:
- 17.5 t
- Transport length:
- 5.35 m
- Transport width:
- 2.244 m
- Transport height:
- 3.032 m
SD16F Shantui SD16F Specifications & Technical Data (2025—2026)
Technical specs - SD16F Shantui
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 17.5 t
- Transport length
- 5.35 m
- Transport width
- 2.244 m
- Transport height
- 3.032 m
- Blade type
- B
- Track width
- 560 mm
- Travel speed
- 9.63 km/h
- Reverse travel speed
- 12.53 km/h
- Front blade width
- 3.455 m
- Model series
- MEDIUM
- Engine manuf.
- Shangchai
- Engine type
- SC11CB184G2B1
- Engine power
- 131 kW
- Displacement
- 10.5 l
- Revolutions at max torque
- 1300 rpm
- Max. torque
- 843 Nm
- Cylinder bore x stroke
- 121x152 mm
- Emission level
- China II
More technical details, like: soil pressure, transmission type, max. drawbar pull, dimension lxwxh, no. of cylinders are available in the full technical specs.
Basic model with ROPS cabin and corresponding blade
Special equipment
- Diesel particulate filter
-
No
- Rear ripper
-
No
- Tilt device
-
No
- Aircondition
-
No
