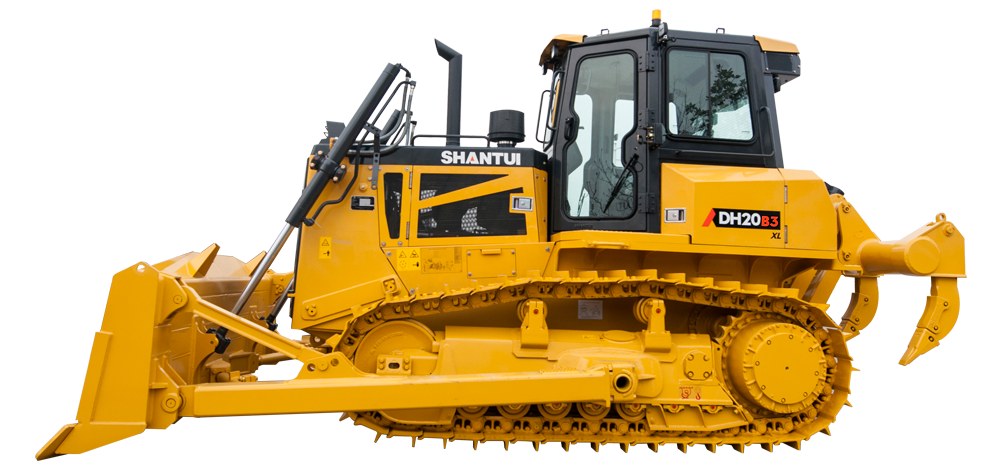

Shantui DH20-B3 XL
- Weight:
- 20.5 t
- Transport length:
- 5.465 m
- Transport width:
- 2.66 m
- Transport height:
- 3.312 m
DH20-B3 XL Shantui DH20-B3 XL Specifications & Technical Data (2025—2026)
Technical specs - DH20-B3 XL Shantui
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 20.5 t
- Transport length
- 5.465 m
- Transport width
- 2.66 m
- Transport height
- 3.312 m
- Blade type
- SU
- Track width
- 610 mm
- Travel speed
- 11 km/h
- Reverse travel speed
- 11 km/h
- Front blade width
- 3.699 m
- Model series
- MEDIUM
- Engine manuf.
- Weichai
- Engine type
- WD12G250E202
- Engine power
- 185 kW
- Displacement
- 11.596 l
- Revolutions at max torque
- 1400 rpm
- Max. torque
- 1200 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 126x155 mm
- Emission level
- China II
More technical details, like: soil pressure, transmission type, max. drawbar pull, dimension lxwxh are available in the full technical specs.
Basic model with ROPS cabin and corresponding blade
Special equipment
- Diesel particulate filter
-
No
- Rear ripper
-
No
- Tilt device
-
No
- Aircondition
-
No
