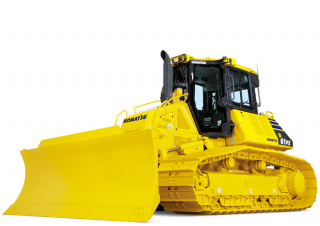

Komatsu D61EX-24E0 Specifications & Technical Data (2015-2021)

Technical specs - D61EX-24E0 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 18.52 t

Transport length: 5.48 m

Transport width: 2.98 m

Transport height: 3.18 m

Soil pressure: 0.47 kg/cm²

Track width: 600 mm

Travel speed: 9 km/h

Reverse travel speed: 9 km/h

Front blade width: 3.25 m

Transmission type: HY

Model series: D

Engine manuf.: Komatsu

Engine type: SAA6D107E-3

Engine power: 125 kW

Displacement: 6.69 l

Revolutions at max torque: 2200 rpm

No. of cylinders: 6

Cylinder bore x stroke: 107x124 mm

Emission level: IV

More technical details, like: blade type, max. drawbar pull, dimension lxwxh, max. torque, undercarriage type, undercarriage system, traction control system, cab - type, rops, fops, rear view system available, platform...

More technical details, like: blade type, max. drawbar pull, dimension lxwxh, max. torque, undercarriage type, undercarriage system, traction control system, cab - type, rops, fops, rear view system available, platform, telematics available, platform, grade control available, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, engine output - gross, transmission type, speed mode - 1, speed mode - 2, carrier rollers, track rollers, raised sprocket, shoe - width, shoe - type, ground contact area, number of shoes, service brake type, height - max, height - top of rops, ground clearance, width - over tracks, track length - on ground, blade, blade - width, blade - height, blade - dig depth, blade - lift clearance, blade - tilt, steering - differential, steering - clutches and brakes, fuel tank, blade - capacity, speed - forward maximum, speed - reverse maximum, ground bearing pressure, drawbar pull - maximum, implement pump - flow, implement pump - pressure, operating weight are available in the full technical specs.

Basic model with ROPS cabin and corresponding blade

Special equipment

Diesel particulate filter: No
Rear ripper: No
Tilt device: No
Aircondition: Yes

Download datasheets (PDF)

Komatsu D61EX-24E0 FAQ

When was the Komatsu D61EX-24E0 manufactured?

The Komatsu D61EX-24E0 was manufactured from 2015 to 2021.

How much does the Komatsu D61EX-24E0 bulldozer weigh?

The Komatsu D61EX-24E0 bulldozer weighs 18.52 tons.

What are the transport dimensions of the Komatsu D61EX-24E0 bulldozer?

The Komatsu D61EX-24E0 has a transport length of 5.48 meters, a transport width of 2.98 meters, and a transport height of 3.18 meters.

What are the travel speeds of the Komatsu D61EX-24E0 bulldozer?

The Komatsu D61EX-24E0 bulldozer has a travel speed of 9 km/h and a reverse travel speed of 9 km/h.

What are the undercarriage specifications of the Komatsu D61EX-24E0 bulldozer?

The Komatsu D61EX-24E0 bulldozer has a track width of 600 mm and a soil pressure of 0.47 kg/cmu00b2.

What are the power ratings of the Komatsu D61EX-24E0?

The available data does not include any power ratings for the Komatsu D61EX-24E0.

What is the width of the front blade on the Komatsu D61EX-24E0 bulldozer?

The front blade of the Komatsu D61EX-24E0 bulldozer has a width of 3.25 meters.

How much is a Komatsu D61EX-24E0 Bulldozer (2015u20132021) worth?

The residual value of the Komatsu D61EX-24E0 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
