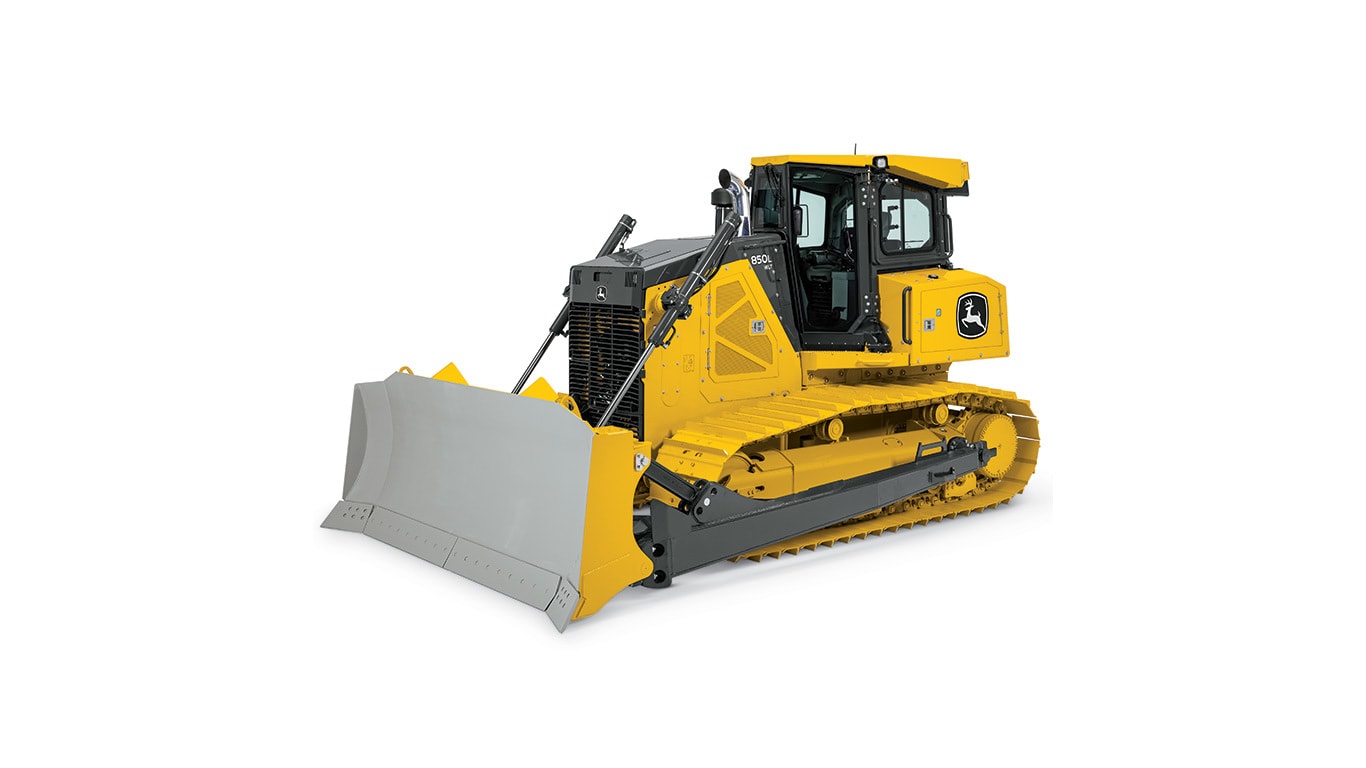

850K WLT John Deere Construction 850K WLT Specifications & Technical Data (2017—2021)
Technical specs - 850K WLT John Deere Construction
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 20.48 t
- Transport length
- 5.74 m
- Transport width
- 3.66 m
- Transport height
- 3.21 m
- Blade type
- S
- Soil pressure
- 0.49 kg/cm²
- Track width
- 760 mm
- Travel speed
- 9.7 km/h
- Reverse travel speed
- 9.7 km/h
- Front blade width
- 3.71 m
- Transmission type
- HY
- max. Drawbar Pull
- 36.3 t
- Model series
- K
- Engine manuf.
- John Deere
- Engine type
- PowerTech PVS 6068
- Engine power
- 152 kW
- Displacement
- 6.8 l
- Revolutions at max torque
- 1800 rpm
- Max. torque
- 915/1500 Nm
- No. of cylinders
- 6
- Emission level
- Tier 4f/EU IV
More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and corresponding blade
Special equipment
- Diesel particulate filter
-
No
- Rear ripper
-
No
- Tilt device
-
No
- Aircondition
-
No
Download datasheets (PDF)
