Lectura specs Construction machinery Bulldozers Bulldozers Caterpillar Caterpillar D7R XR specifications

Technical specs - D7R XR Caterpillar

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight 25.441 t
Transport length 4.736 m
Transport width 2.876 m
Transport height 3.29 m
Blade type SU
Track width 560 mm
Travel speed 10.54 km/h
Travel speed reverse 13.58 km/h
Front blade width 3.693 m
Transmission type LS
Engine manuf. Caterpillar
Engine type C9 ACERT
Engine power 194 kW
Engine power 260 HP
Displacement 8.8 l
Cylinder bore x stroke 112x149 mm
Emission level Tier 2/stage II
Soil pressure ###
max. Drawbar Pull ###
Dimension lxwxh ###
Revolutions at max torque ###
Max. torque ###
No. of cylinders ###
Weight ###

Basic model with ROPS cabin and corresponding blade

D7R XR Caterpillar - Special equipment

  • Diesel particulate filter
  • Rear ripper
  • Tilt device
  • Aircondition

Download data sheets - Caterpillar D7R XR


What do you think about this machine?

Sell your Caterpillar D7R XR for a good price

Receive the best purchase offer² within 48 hours¹ from the network of WeBuyHeavyMachines.com with over 1,000 international dealers.

Compare Caterpillar D7R XR with other models

Press 1 image

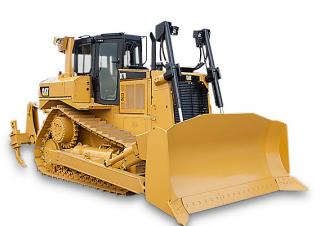

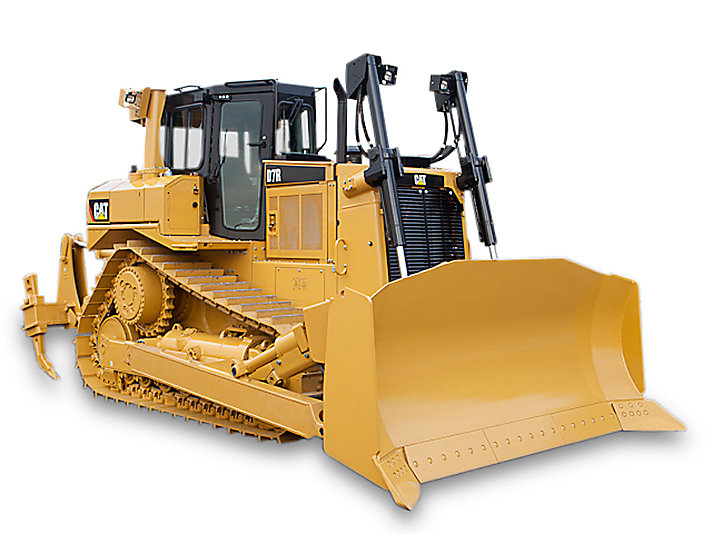

Caterpillar D7R XR
