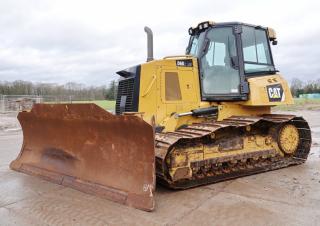

D6K2 LGP Caterpillar D6K2 LGP Specifications & Technical Data (2015—2017)

Weight: 13.95t – Transport length: 4.22m – Transport width: 2.85m – Transport height: 2.96m – Blade type: PAT – Track width: 760mm

D6K2 LGP

Years of manufacture: 2015—2017

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - D6K2 LGP Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 13.95 t

Transport length: 4.22 m

Transport width: 2.85 m

Transport height: 2.96 m

Blade type: PAT

Track width: 760 mm

Travel speed: 10 km/h

Reverse travel speed: 10 km/h

Transmission type: HY

Model series: D

Engine manuf.: Caterpillar

Engine type: C6.6 Acert

Engine power: 116 kW

Displacement: 6.6 l

Emission level: Tier 3 b

More technical details, like: soil pressure, front blade width, max. drawbar pull, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, undercarriage type, telematics available, platform, grade control available, platform, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, engine output - gross, transmission type, carrier rollers, track rollers, raised sprocket, shoe - width, shoe - type, ground contact area, number of shoes, service brake type, height - max, height - top of rops, ground clearance, width - over tracks, track length - on ground, length - no blade, blade, blade - width, steering - differential, steering - clutches and brakes, fuel tank, blade - capacity, speed - forward maximum, speed - reverse maximum, ground bearing pressure, drawbar pull - maximum, operating weight are available in the full technical specs.

Basic model with ROPS cabin and corresponding blade

Special equipment

Diesel particulate filter: No
Rear ripper: No
Tilt device: No
Aircondition: Yes

Caterpillar D6K2 LGP FAQ

When was the Caterpillar D6K2 LGP manufactured?

The Caterpillar D6K2 LGP was manufactured from 2015 to 2017.

How much does the Caterpillar D6K2 LGP weigh?

The Caterpillar D6K2 LGP weighs 13.95 tons.

What are the transport dimensions of the Caterpillar D6K2 LGP bulldozer?

The Caterpillar D6K2 LGP has a transport length of 4.22 meters, a transport width of 2.85 meters, and a transport height of 2.96 meters.

What are the travel speeds of the Caterpillar D6K2 LGP bulldozer?

The Caterpillar D6K2 LGP bulldozer has a travel speed of 10 km/h and a reverse travel speed of 10 km/h.

What is the track width of the Caterpillar D6K2 LGP bulldozer?

The Caterpillar D6K2 LGP bulldozer has a track width of 760 mm.

What are the power ratings of the Caterpillar D6K2 LGP bulldozer?

The source data does not provide any power rating information for the Caterpillar D6K2 LGP bulldozer.

What type of blade does the Caterpillar D6K2 LGP bulldozer use?

The Caterpillar D6K2 LGP bulldozer uses a 6-way blade as its primary work tool.

How much is a Caterpillar D6K2 LGP Bulldozer (2015u20132017) worth?

The residual value of the Caterpillar D6K2 LGP depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
