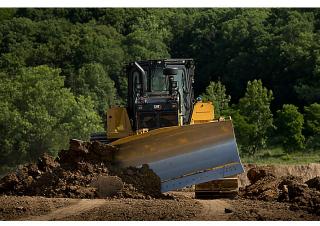

D6 XE XL Caterpillar D6 XE XL Specifications & Technical Data (2019—2026)

Weight: 22t – Transport length: 5.436m – Transport width: 2.54m – Transport height: 3.172m – Blade type: SU – Track width: 560mm

D6 XE XL

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - D6 XE XL Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 22 t

Transport length: 5.436 m

Transport width: 2.54 m

Transport height: 3.172 m

Blade type: SU

Track width: 560 mm

Travel speed: 11.7 km/h

Reverse travel speed: 11.7 km/h

Front blade width: 3.312 m

Transmission type: e

Model series: D

Engine manuf.: Caterpillar

Engine type: C9.3B

Engine power: 177 kW

Displacement: 9.3 l

Cylinder bore x stroke: 115x149 mm

Emission level: Tier 4 F/ V

More technical details, like: soil pressure, max. drawbar pull, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin and corresponding blade

Special equipment

Diesel particulate filter: Yes
Rear ripper: No
Tilt device: No
Aircondition: Yes

Download specalog and datasheets (PDF)

Caterpillar D6 XE XL FAQ

When was the Caterpillar D6 XE XL manufactured?

The Caterpillar D6 XE XL was first produced in 2019.

How much does the Caterpillar D6 XE XL weigh?

The Caterpillar D6 XE XL weighs 22 tons.

What are the transport dimensions of the Caterpillar D6 XE XL bulldozer?

The Caterpillar D6 XE XL has a transport length of 5.44 meters, a transport width of 2.54 meters, and a transport height of 3.17 meters.

What are the travel speeds of the Caterpillar D6 XE XL bulldozer?

The Caterpillar D6 XE XL bulldozer has a travel speed of 11.7 km/h forward and 11.7 km/h in reverse.

What is the track width of the Caterpillar D6 XE XL bulldozer's undercarriage?

The Caterpillar D6 XE XL bulldozer has a track width of 560 mm.

What are the power ratings of the Caterpillar D6 XE XL?

Power rating information for the Caterpillar D6 XE XL is not provided in the available data.

What are the specifications of the primary work tool on the Caterpillar D6 XE XL?

The Caterpillar D6 XE XL is equipped with a Semi-U-blade that has a front blade width of 3.31 meters.
