SWB100ZB Sinoway SWB100ZB Specifications & Technical Data (2025—2026)

Weight: 8.1t – Standard tyres: 14-17.5/19.5L-24 – Bucket capacity: 1m³ – Bucket capacity backhoe: 0.2m³ – Transport length: 5.92m – Transport width: 2.25m

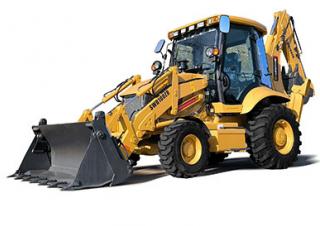

Backhoe Loaders Sinoway SWB100ZB

Technical specs - SWB100ZB Sinoway

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.1 t
Standard tyres
14-17.5/19.5L-24
Bucket capacity
1 m³
Bucket capacity backhoe
0.2 m³
Transport length
5.92 m
Transport width
2.25 m
Transport height
3.765 m
Tear-out force
38 kN
Tear-out force backhoe
46.5 kN
Dredging depth
4.082 m
Max. discharge height
2.742 m
Model series
SWB
Engine manuf.
Cummins
Engine type
N/A
Engine power
74 kW
No. of cylinders
4

More technical details, like: bucket width, drive, max. reach horizontal, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
Yes
