RBH65 RHINO RBH65 Specifications & Technical Data (2017—2026)

The RHINO RBH65 is a backhoe loader manufactured by RHINO since 2017. It has a weight of 7 tons and a transport length of 7.4 mete…

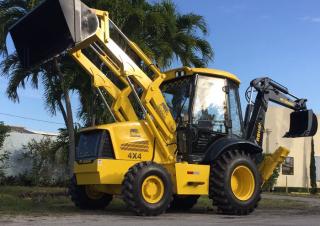

The RHINO RBH65 is a backhoe loader manufactured by RHINO since 2017. It has a weight of 7 tons and a transport length of 7.4 meters. The bucket capacity is 1 cubic meter, with a dredging depth of 3.8 meters and a bucket width of 2.315 meters. The maximum discharge height is 2.55 meters, and it has a travel speed of 29 kilometers per hour. The transport width is 2.17 meters, and the transport height is 2.95 meters. This construction machine is equipped with outrigger stabilizers as its special equipment.

Backhoe Loaders RHINO RBH65

Technical specs - RBH65 RHINO

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7 t
Standard tyres
12-16.5/19.5L-24
Bucket width
2.315 m
Bucket capacity
1 m³
Drive
A
Transport length
7.4 m
Transport width
2.17 m
Transport height
2.95 m
Dredging depth
3.8 m
Max. discharge height
2.55 m
Travel speed
29 km/h
Model series
RBH
Engine manuf.
Cummins
Engine type
4BT 3.9
Engine power
60 kW
Displacement
3.9 l
Revolutions at max torque
1500 rpm
Max. torque
360 Nm
Emission level
Tier 2

More technical details, like: bucket capacity backhoe, tear-out force, tear-out force backhoe, max. reach horizontal, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

RHINO RBH65 FAQ

When was the RHINO RBH65 manufactured?

The RHINO RBH65 was first produced in 2017.

How much does the RHINO RBH65 backhoe loader weigh?

The RHINO RBH65 backhoe loader weighs 7 tons.

What are the transport dimensions of the RHINO RBH65 backhoe loader?

The RHINO RBH65 has a transport length of 7.4 meters, a transport width of 2.17 meters, and a transport height of 2.95 meters.

What is the travel speed of the RHINO RBH65 backhoe loader?

The RHINO RBH65 backhoe loader has a travel speed of 29 km/h.

What are the undercarriage specifications of the RHINO RBH65 backhoe loader?

The RHINO RBH65 backhoe loader features an all-wheel drive system and comes equipped with standard tyres sized 12-16.5/19.5L-24.

What is the dredging depth of the RHINO RBH65?

The RHINO RBH65 has a dredging depth of 3.8 meters.

What is the maximum discharge height of the RHINO RBH65 backhoe loader?

The RHINO RBH65 backhoe loader has a maximum discharge height of 2.55 meters.

What are the specifications of the primary work tool bucket on the RHINO RBH65 backhoe loader?

The primary work tool bucket of the RHINO RBH65 has a capacity of 1 cubic meter and a width of 2.32 meters.
