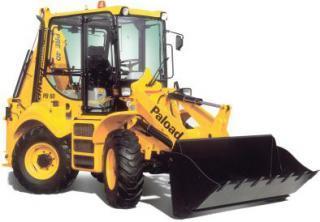

Palazzani PB 60 Backhoe Loader Specs & Dimensions (1997 - 2004)

Technical specs - PB 60 Palazzani

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6.1 t

Standard tyres: 14.5x20

Bucket capacity: 0.85 m³

Drive: A

Transport length: 5.08 m

Transport width: 1.9 m

Transport height: 3.8 m

Model series: PB

Engine manuf.: Perkins

Engine type: 704.30

Engine power: 52 kW

More technical details, like: bucket width, bucket capacity backhoe, tear-out force, tear-out force backhoe, max. reach horizontal, dredging depth, max. discharge height, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: bucket width, bucket capacity backhoe, tear-out force, tear-out force backhoe, max. reach horizontal, dredging depth, max. discharge height, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, backhoe type, engine manufacturer, engine model, aspiration, rated speed, engine output - net, engine output - gross, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, length - roading, height - over cab, maximum height, width, ground clearance, width - standard shovel, stabiliser type, maximum dig depth - longest dipper, dig depth - sae, reach from slew pivot - non-extending dipper, loading height - non-extending dipper, dump height - general purpose, fuel tank, shovel capacity - standard general purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: No
Forklift utility: No
Grabber: Yes
Diesel particulate filter: No
Aircondition: No

Palazzani PB 60 FAQ

When was the Palazzani PB 60 manufactured?

The Palazzani PB 60 was manufactured from 1997 to 2004.

How much does the Palazzani PB 60 backhoe loader weigh?

The Palazzani PB 60 backhoe loader weighs 6.1 tons.

What are the transport dimensions of the Palazzani PB 60 backhoe loader?

The Palazzani PB 60 has a transport length of 5.08 meters, a transport width of 1.9 meters, and a transport height of 3.8 meters.

What are the undercarriage specifications of the Palazzani PB 60 backhoe loader?

The Palazzani PB 60 backhoe loader has an all-wheel drive system and is equipped with standard tyres sized 14.5x20.

What is the bucket capacity of the Palazzani PB 60 backhoe loader?

The Palazzani PB 60 backhoe loader has a bucket capacity of 0.85 cubic meters.

How much is a Palazzani PB 60 Backhoe loader (1997u20132004) worth?

The residual value of the Palazzani PB 60 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
