TLB870 Mecalac TLB870 Specifications & Technical Data (2017—2026)

The Mecalac TLB870 is a backhoe loader manufactured since 2017. It has a weight of 7.69 tons and a transport length of 6.12 meters…

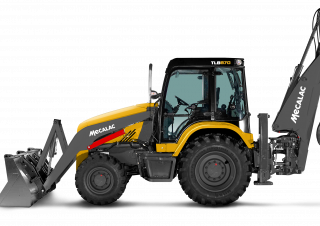

The Mecalac TLB870 is a backhoe loader manufactured since 2017. It has a weight of 7.69 tons and a transport length of 6.12 meters. The bucket capacity is 1 cubic meter, with a tear-out force of 46 kilonewtons. It can dredge up to a depth of 5.74 meters and has a bucket width of 2.31 meters. The maximum discharge height is 3.37 meters, and it can reach horizontally up to 6.99 meters. The travel speed is 39 kilometers per hour. The transport width is 2.31 meters, and the transport height is 3.6 meters. The backhoe has a bucket capacity of 0.58 cubic meters and a tear-out force of 42.2 kilonewtons.

Backhoe Loaders Mecalac TLB870

Technical specs - TLB870 Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.69 t
Standard tyres
12.5/80x18 / 16.9x30
Bucket width
2.31 m
Bucket capacity
1 m³
Bucket capacity backhoe
0.58 m³
Transport length
6.12 m
Transport width
2.31 m
Transport height
3.6 m
Tear-out force
46 kN
Tear-out force backhoe
42.2 kN
Max. Reach horizontal
6.99 m
Dredging depth
5.74 m
Max. discharge height
3.37 m
Travel speed
39 km/h
Model series
TLB
Engine manuf.
Perkins
Engine type
1204E-E44TA
Engine power
70 kW
Displacement
4.4 l
Revolutions at max torque
2200 rpm
Max. torque
400/1400 Nm
Emission level
IIIA/Tier 4 i

More technical details, like: drive, dimension lxwxh, no. of cylinders, cylinder bore x stroke, backhoe type, engine manufacturer, engine model, aspiration, diesel oxidation catalyst, diesel particulate filter, selective catalytic reduction, rated speed...

More technical details, like: drive, dimension lxwxh, no. of cylinders, cylinder bore x stroke, backhoe type, engine manufacturer, engine model, aspiration, diesel oxidation catalyst, diesel particulate filter, selective catalytic reduction, rated speed, engine output - net, engine output - gross, torque rated speed, torque, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, height - over cab, width, width - standard shovel, stabiliser type, maximum dig depth - longest dipper, dig depth - sae, dig depth - sae retracted dipper, dig depth - sae extended dipper, reach from slew pivot - non-extending dipper, reach from slew pivot - retracted dipper, reach from slew pivot - extended dipper, loading height - non-extending dipper, loading height - retracted dipper, loading height - extended dipper, dump height - general purpose, dump angle - general purpose, dump height - multi-purpose, dump angle - multi-purpose, fuel tank, shovel capacity - standard general purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Mecalac TLB870 FAQ

When was the Mecalac TLB870 manufactured?

The Mecalac TLB870 was first produced in 2017.

How much does the Mecalac TLB870 backhoe loader weigh?

The Mecalac TLB870 backhoe loader weighs 7.69 tons.

What are the transport dimensions of the Mecalac TLB870 backhoe loader?

The Mecalac TLB870 has a transport length of 6.12 meters, a transport width of 2.31 meters, and a transport height of 3.6 meters.

What is the travel speed of the Mecalac TLB870 backhoe loader?

The Mecalac TLB870 backhoe loader has a travel speed of 39 km/h.

What are the undercarriage specifications of the Mecalac TLB870 backhoe loader?

The Mecalac TLB870 is equipped with standard tyres sized 12.5/80x18 and 16.9x30.

What is the excavation performance of the Mecalac TLB870 backhoe loader?

The Mecalac TLB870 has a dredging depth of 5.74 meters and a maximum horizontal reach of 6.99 meters.

What are the tear-out forces of the Mecalac TLB870 backhoe loader?

The Mecalac TLB870 has a tear-out force of 46 kN and a backhoe tear-out force of 42.2 kN.

What is the maximum discharge height of the Mecalac TLB870?

The maximum discharge height of the Mecalac TLB870 is 3.37 meters.

What are the specifications of the primary work tool bucket on the Mecalac TLB870 backhoe loader?

The Mecalac TLB870 has a front bucket with a capacity of 1 cubic meter and a width of 2.31 meters, and a backhoe bucket capacity of 0.58 cubic meters.
