WB 150-2 Komatsu WB 150-2 Specifications & Technical Data (1999—2006)

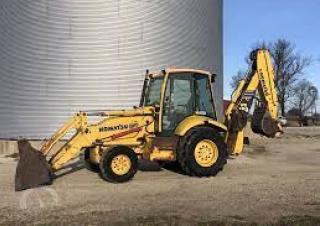

The Komatsu WB 150-2 is a backhoe loader manufactured from 1999 to 2006. It has a weight of 7.89 tons and a transport length of 6.…

The Komatsu WB 150-2 is a backhoe loader manufactured from 1999 to 2006. It has a weight of 7.89 tons and a transport length of 6.125 meters. The bucket capacity is 0.95 cubic meters, with a tear-out force of 62 kilonewtons. It can dredge up to a depth of 5.18 meters and has a bucket width of 2.355 meters. The maximum discharge height is 3.71 meters, and it can reach a maximum horizontal distance of 2.75 meters. The travel speed is 23.5 kilometers per hour. The transport width is 2.355 meters, and the transport height is 3.5 meters. The backhoe tear-out force is 41 kilonewtons.

Backhoe Loaders Komatsu WB 150-2

Visit Komatsu live at

Technical specs - WB 150-2 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.89 t
Standard tyres
F: 14.0 x 17.5 10PR. R: 19.5L x 24.0 10PR
Bucket width
2.355 m
Bucket capacity
0.95 m³
Drive
H
Transport length
6.125 m
Transport width
2.355 m
Transport height
3.5 m
Tear-out force
62 kN
Tear-out force backhoe
41 kN
Max. Reach horizontal
2.75 m
Dredging depth
5.18 m
Max. discharge height
3.71 m
Travel speed
23.5 km/h
Model series
WB
Engine manuf.
Komatsu
Engine type
S4D106-1FA
Engine power
73 kW
Displacement
4.412 l
Revolutions at max torque
2200 rpm
Max. torque
375 Nm
No. of cylinders
4
Cylinder bore x stroke
106x125 mm

More technical details, like: bucket capacity backhoe, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Komatsu WB 150-2 FAQ

When was the Komatsu WB 150-2 manufactured?

The Komatsu WB 150-2 was manufactured from 1999 to 2006.

How much does the Komatsu WB 150-2 weigh?

The Komatsu WB 150-2 weighs 7.89 tons.

What are the transport dimensions of the Komatsu WB 150-2 backhoe loader?

The Komatsu WB 150-2 has a transport length of 6.13 meters, a transport width of 2.36 meters, and a transport height of 3.5 meters.

What is the travel speed of the Komatsu WB 150-2 backhoe loader?

The Komatsu WB 150-2 backhoe loader has a travel speed of 23.5 km/h.

What are the undercarriage specifications of the Komatsu WB 150-2 backhoe loader?

The Komatsu WB 150-2 has a rear wheel drive and comes with standard tyres sized Front: 14.0 x 17.5 10PR and Rear: 19.5L x 24.0 10PR.

What are the dredging depth and maximum horizontal reach of the Komatsu WB 150-2 backhoe loader?

The Komatsu WB 150-2 has a dredging depth of 5.18 meters and a maximum horizontal reach of 2.75 meters.

What are the tear-out forces of the Komatsu WB 150-2 backhoe loader?

The Komatsu WB 150-2 has a tear-out force of 62 kN and a backhoe tear-out force of 41 kN.

What is the maximum discharge height for material handling of the Komatsu WB 150-2?

The Komatsu WB 150-2 has a maximum discharge height of 3.71 meters for material handling.

What are the specifications of the primary work tool on the Komatsu WB 150-2 backhoe loader?

The primary work tool of the Komatsu WB 150-2 backhoe loader has a bucket capacity of 0.95 cubic meters and a bucket width of 2.36 meters.

How much is a Komatsu WB 150-2 Backhoe loader (1999u20132006) worth?

The residual value of the Komatsu WB 150-2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
