410 K John Deere Construction 410 K Specifications & Technical Data (2012—2021)

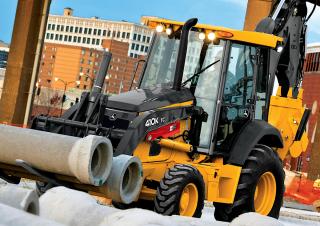

The John Deere Construction 410 K is a backhoe loader manufactured by John Deere Construction from 2012 to 2021. It has a weight o…

The John Deere Construction 410 K is a backhoe loader manufactured by John Deere Construction from 2012 to 2021. It has a weight of 7.435 tons and a transport length of 7.29 meters. The bucket capacity is 1 cubic meter, with a tear-out force of 45.8 kilonewtons. It can dredge up to a depth of 6.07 meters and has a bucket width of 2.337 meters. The maximum discharge height is 4.72 meters, and it has a maximum reach horizontal of 8.33 meters. The travel speed of this backhoe loader is 40 kilometers per hour. It has a transport width of 2.18 meters and a transport height of 2.82 meters. Additionally, it is equipped with special equipment including a diesel particulate filter, forklift utility, and outrigger stabilizers. The backhoe bucket capacity is 0.21 cubic meters, and it has a tear-out force of 67.7 kilonewtons.

410 K

Years of manufacture: 2012—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 410 K John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7.435 t

Standard tyres: F: 14.5/75-16 1 SL F-3 R: 21L-24 R-4

Bucket width: 2.337 m

Bucket capacity: 1 m³

Bucket capacity backhoe: 0.21 m³

Transport length: 7.29 m

Transport width: 2.18 m

Transport height: 2.82 m

Tear-out force: 45.8 kN

Tear-out force backhoe: 67.7 kN

Max. Reach horizontal: 8.33 m

Dredging depth: 6.07 m

Max. discharge height: 4.72 m

Travel speed: 40 km/h

Model series: K

Engine manuf.: John Deere

Engine type: 4045HT063

Engine power: 80 kW

Displacement: 4.5 l

Max. torque: 430 Nm

No. of cylinders: 4

Emission level: EPA Interm Tier 4/EU Stage IIIB

More technical details, like: drive, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: No
Forklift utility: Yes
Grabber: No
Diesel particulate filter: Yes
Aircondition: No

Download datasheets (PDF)

John Deere Construction 410 K FAQ

When was the John Deere Construction 410 K manufactured?

The John Deere Construction 410 K was manufactured from 2012 to 2021.

How much does the John Deere Construction 410 K weigh?

The John Deere Construction 410 K weighs 7.44 tons.

What are the transport dimensions of the John Deere Construction 410 K backhoe loader?

The John Deere Construction 410 K has a transport length of 7.29 meters, a transport width of 2.18 meters, and a transport height of 2.82 meters.

What is the travel speed of the John Deere Construction 410 K backhoe loader?

The John Deere Construction 410 K backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the John Deere Construction 410 K backhoe loader?

The John Deere Construction 410 K is equipped with standard tyres sized Front: 14.5/75-16 1 SL F-3 and Rear: 21L-24 R-4.

What are the dredging depth and maximum horizontal reach of the John Deere Construction 410 K?

The John Deere Construction 410 K has a dredging depth of 6.07 meters and a maximum horizontal reach of 8.33 meters.

What are the tear-out forces of the John Deere Construction 410 K backhoe loader?

The John Deere Construction 410 K has a tear-out force of 45.8 kN and a tear-out force for the backhoe of 67.7 kN.

What is the material handling capacity of the John Deere Construction 410 K in terms of discharge height?

The John Deere Construction 410 K has a maximum discharge height of 4.72 meters.

What are the specifications of the primary work tool bucket on the John Deere Construction 410 K?

The John Deere Construction 410 K has a primary bucket with a capacity of 1 cubic meter and a width of 2.34 meters, and its backhoe bucket has a capacity of 0.21 cubic meters.
