310 SG John Deere Construction 310 SG Specifications & Technical Data (2001—2021)

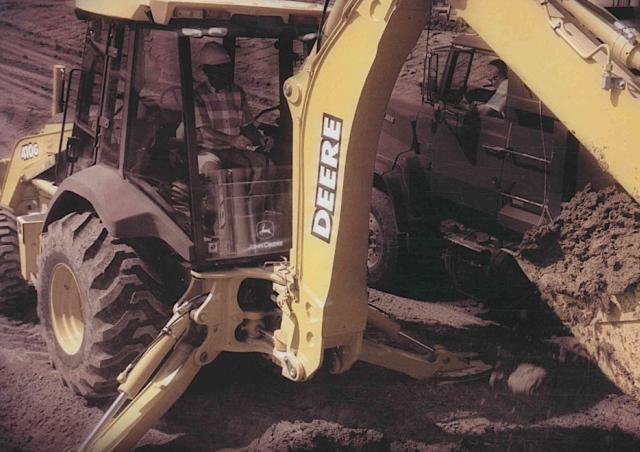

The John Deere Construction 310 SG is a backhoe loader manufactured by John Deere Construction from 2001 to 2021. It has a weight …

The John Deere Construction 310 SG is a backhoe loader manufactured by John Deere Construction from 2001 to 2021. It has a weight of 6.123 tons and a transport length of 7.16 meters. The bucket capacity is 0.96 cubic meters, with a tear-out force of 39.2 kilonewtons. The dredging depth is 5.53 meters, and the bucket width is 2.18 meters. The maximum discharge height is 4.39 meters, and the maximum reach horizontal is 7.72 meters. It has a travel speed of 43.8 kilometers per hour. The transport width is 2.18 meters, and the transport height is 3.51 meters. The backhoe has a bucket capacity of 0.13 cubic meters and a tear-out force of 49.9 kilonewtons. It also includes special equipment such as a diesel particulate filter, forklift utility, and outrigger stabilizers.

310 SG

Years of manufacture: 2001—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 310 SG John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6.123 t

Standard tyres: F: 11L-15 8PR F3 R: 16.9-24 8PR R4

Bucket width: 2.18 m

Bucket capacity: 0.96 m³

Bucket capacity backhoe: 0.13 m³

Transport length: 7.16 m

Transport width: 2.18 m

Transport height: 3.51 m

Tear-out force: 39.2 kN

Tear-out force backhoe: 49.9 kN

Max. Reach horizontal: 7.72 m

Dredging depth: 5.53 m

Max. discharge height: 4.39 m

Travel speed: 43.8 km/h

Model series: G

Engine manuf.: John Deere

Engine type: 4045T

Engine power: 66 kW

Displacement: 4.524 l

Max. torque: 368 Nm

No. of cylinders: 4

More technical details, like: drive, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: No
Forklift utility: Yes
Grabber: No
Diesel particulate filter: Yes
Aircondition: No

Download datasheets (PDF)

John Deere Construction 310 SG FAQ

When was the John Deere Construction 310 SG manufactured?

The John Deere Construction 310 SG was manufactured from 2001 to 2021.

How much does the John Deere Construction 310 SG weigh?

The John Deere Construction 310 SG weighs 6.12 tons.

What are the transport dimensions of the John Deere Construction 310 SG backhoe loader?

The John Deere Construction 310 SG has a transport length of 7.16 meters, a transport width of 2.18 meters, and a transport height of 3.51 meters.

What is the travel speed of the John Deere Construction 310 SG backhoe loader?

The John Deere Construction 310 SG backhoe loader has a travel speed of 43.8 km/h.

What are the undercarriage tyre specifications of the John Deere Construction 310 SG backhoe loader?

The John Deere Construction 310 SG is equipped with front tyres sized 11L-15 8PR F3 and rear tyres sized 16.9-24 8PR R4.

What are the excavation performance specifications of the John Deere Construction 310 SG backhoe loader?

The John Deere Construction 310 SG has a dredging depth of 5.53 meters and a maximum horizontal reach of 7.72 meters.

What are the tear-out forces of the John Deere Construction 310 SG backhoe loader?

The John Deere Construction 310 SG has a tear-out force of 39.2 kN and a backhoe tear-out force of 49.9 kN.

What is the maximum discharge height of the John Deere Construction 310 SG?

The John Deere Construction 310 SG has a maximum discharge height of 4.39 meters.

What are the specifications of the primary work tool on the John Deere Construction 310 SG backhoe loader?

The John Deere Construction 310 SG features a bucket with a capacity of 0.96 cubic meters and a width of 2.18 meters, along with a backhoe bucket capacity of 0.13 cubic meters.
