3CX SM JCB 3CX SM Specifications & Technical Data (2017—2020)

The JCB 3CX SM Backhoe Loader, manufactured from 2017 to 2020, weighs 8.1 tons and has a transport length of 5.62 meters. It has a…

The JCB 3CX SM Backhoe Loader, manufactured from 2017 to 2020, weighs 8.1 tons and has a transport length of 5.62 meters. It has a bucket capacity of 1 cubic meter and can dredge up to a depth of 4.24 meters. The bucket width is 2.35 meters, and it can reach a maximum discharge height of 2.74 meters. With a maximum horizontal reach of 5.37 meters, it has a transport width of 2.35 meters and a transport height of 3.61 meters.

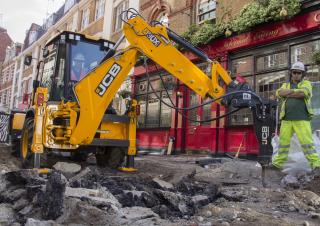

Backhoe Loaders JCB 3CX SM

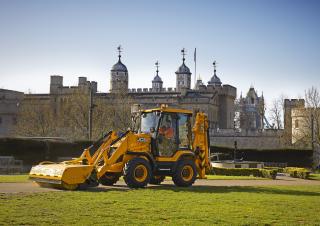

Backhoe Loaders JCB 3CX SM
Backhoe Loaders JCB 3CX SM
Backhoe Loaders JCB 3CX SM
Backhoe Loaders JCB 3CX SM
Backhoe Loaders JCB 3CX SM

Visit JCB live at

Technical specs - 3CX SM JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.1 t
Standard tyres
12.5x18-10/18.4x26-12
Bucket width
2.35 m
Bucket capacity
1 m³
Drive
A
Transport length
5.62 m
Transport width
2.35 m
Transport height
3.61 m
Tear-out force
53.3 kN
Max. Reach horizontal
5.37 m
Dredging depth
4.24 m
Max. discharge height
2.74 m
Model series
CX
Engine manuf.
JCB
Engine type
EcoMax
Engine power
68 kW
Displacement
4.4 l
No. of cylinders
4
Emission level
IV

More technical details, like: bucket capacity backhoe, tear-out force backhoe, travel speed, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

JCB 3CX SM FAQ

When was the JCB 3CX SM manufactured?

The JCB 3CX SM was manufactured from 2017 to 2020.

How much does the JCB 3CX SM backhoe loader weigh?

The JCB 3CX SM backhoe loader weighs 8.1 tons.

What are the transport dimensions of the JCB 3CX SM backhoe loader?

The JCB 3CX SM has a transport length of 5.62 meters, a transport width of 2.35 meters, and a transport height of 3.61 meters.

What are the undercarriage specifications of the JCB 3CX SM backhoe loader?

The JCB 3CX SM backhoe loader features an all-wheel drive and comes equipped with standard tyres sized 12.5x18-10 and 18.4x26-12.

What are the excavation performance specifications of the JCB 3CX SM backhoe loader?

The JCB 3CX SM has a dredging depth of 4.24 meters and a maximum horizontal reach of 5.37 meters.

What is the tear-out force of the JCB 3CX SM backhoe loader, the available power-related specification?

The JCB 3CX SM backhoe loader has a tear-out force of 53.3 kN.

What is the maximum discharge height of the JCB 3CX SM?

The JCB 3CX SM has a maximum discharge height of 2.74 meters.

What are the specifications of the primary work tool bucket on the JCB 3CX SM?

The primary work tool bucket of the JCB 3CX SM has a capacity of 1 cubic meter and a width of 2.35 meters.

How much is a JCB 3CX SM Backhoe loader (2017u20132020) worth?

The residual value of the JCB 3CX SM depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
