3CX Compact Pro JCB 3CX Compact Pro Specifications & Technical Data (2020—2026)

The JCB 3CX Compact Pro is a backhoe loader manufactured by JCB since 2020. It has a weight of 6 tons and a transport length of 5.…

The JCB 3CX Compact Pro is a backhoe loader manufactured by JCB since 2020. It has a weight of 6 tons and a transport length of 5.52 meters. The bucket capacity is 1 cubic meter, with a dredging depth of 3.38 meters and a bucket width of 2 meters. The maximum discharge height is 2.35 meters, and it has a maximum reach horizontal of 4.6 meters. The travel speed of this machine is 40 km/h. It has a transport width of 2 meters and a transport height of 3.08 meters. Special equipment includes a diesel particulate filter and outrigger stabilizers.

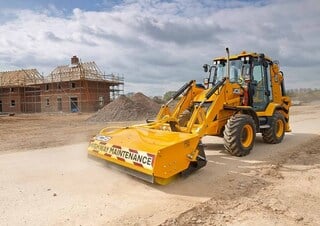

Backhoe Loaders JCB 3CX Compact Pro
Backhoe Loaders JCB 3CX Compact Pro
Backhoe Loaders JCB 3CX Compact Pro

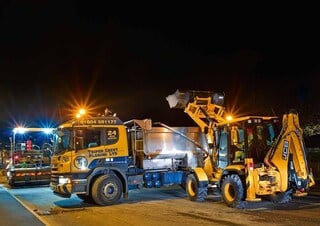

Backhoe Loaders JCB 3CX Compact Pro

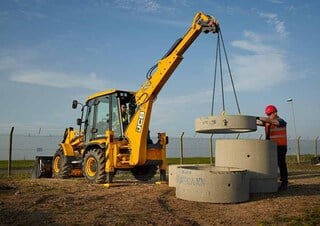

Backhoe Loaders JCB 3CX Compact Pro
Backhoe Loaders JCB 3CX Compact Pro
Backhoe Loaders JCB 3CX Compact Pro
Backhoe Loaders JCB 3CX Compact Pro
Backhoe Loaders JCB 3CX Compact Pro
Backhoe Loaders JCB 3CX Compact Pro

Visit JCB live at

Technical specs - 3CX Compact Pro JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6 t
Standard tyres
12.5x18-10
Bucket width
2 m
Bucket capacity
1 m³
Drive
A
Transport length
5.52 m
Transport width
2 m
Transport height
3.08 m
Max. Reach horizontal
4.6 m
Dredging depth
3.38 m
Max. discharge height
2.35 m
Travel speed
40 km/h
Engine manuf.
Kohler
Engine type
k.A.
Engine power
55 kW
Displacement
2.483 l
Revolutions at max torque
2200 rpm
Max. torque
330 Nm
No. of cylinders
4
Cylinder bore x stroke
88x102 mm
Emission level
V

More technical details, like: bucket capacity backhoe, tear-out force, tear-out force backhoe, model series, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
Yes
Aircondition
No

Download datasheets (PDF)

JCB 3CX Compact Pro FAQ

When was the JCB 3CX Compact Pro manufactured?

The JCB 3CX Compact Pro was first produced in 2020.

How much does the JCB 3CX Compact Pro weigh?

The JCB 3CX Compact Pro weighs 6 tons.

What are the transport dimensions of the JCB 3CX Compact Pro backhoe loader?

The JCB 3CX Compact Pro has a transport length of 5.52 meters, a transport width of 2 meters, and a transport height of 3.08 meters.

What is the travel speed of the JCB 3CX Compact Pro backhoe loader?

The JCB 3CX Compact Pro has a travel speed of 40 km/h.

What are the undercarriage specifications of the JCB 3CX Compact Pro?

The JCB 3CX Compact Pro has an all-wheel drive system and uses standard tyres sized 12.5x18-10.

What is the excavation performance of the JCB 3CX Compact Pro?

The JCB 3CX Compact Pro has a dredging depth of 3.38 meters and a maximum horizontal reach of 4.6 meters.

What is the material handling capacity of the JCB 3CX Compact Pro in terms of discharge height?

The JCB 3CX Compact Pro has a maximum discharge height of 2.35 meters.

What are the specifications of the primary work tool on the JCB 3CX Compact Pro backhoe loader?

The primary work tool of the JCB 3CX Compact Pro has a bucket capacity of 1 cubic meter and a bucket width of 2 meters.

How much is a JCB 3CX Compact Pro Backhoe loader (2020u20132025) worth?

The residual value of the JCB 3CX Compact Pro depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
