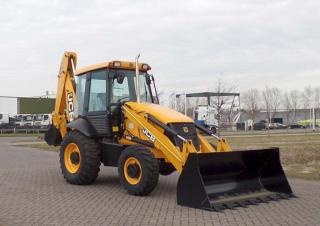

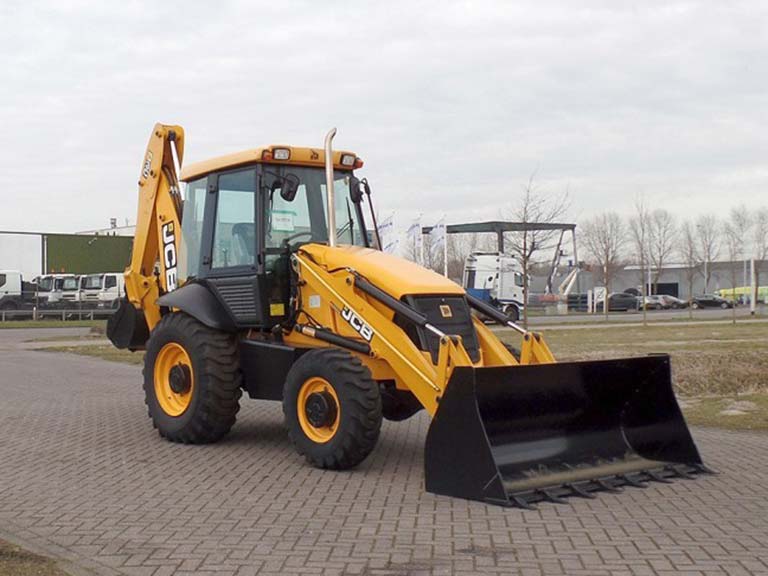

3C-14FT JCB 3C-14FT Specifications & Technical Data (2006—2022)

Brakes

Hydraulically actuated, self-adjusting, oil immersed, inboard, multi-plate type. Separate master cylinder and brake oil reservoir. Independent disk and caliper type parking brake mounted on rear of transmission. 3C- 2WD and 4WD Two pedal service brakes with interlock for individual or simultaneous operation. 3C LL-2WD and 4WD Two pedal service brakes with interlock for individual or simultaneous operation. 3C 15FT 4WD Two pedal service brakes for individual or simultaneous operation. Selectable 4WD braking for improved road deceleration. (4WD units only)

Electrical and Instrumentation

12 volt negative ground, utilizing wiring and connectors meeting IP69 water and dust ingress test standard. Central fuse panel supplemented with main circuit breakers at battery positive terminal. Gauges: Tachometer, engine coolant temp, fuel level, hourmeter. Warning system: Audible and visual system for engine, transmission, park brake, battery charge condition, air cleaner restriction. Battery: 1290 CCA. Pre-wire: Pre-wire for all beacon, radio speakers in cab on 3C 15FT. Front horn button mounted on forward-to-reverse lever. Accessory: 12V power outlet on instrument panel. Reverse alarm: Standard fit. Meets SAE requirements. Alternator: 95 amp.

Transmission

The JCB Transmissions are designed and built specifically for JCB Backhoe Loaders. They feature synchronized shifting in all gears. Power shift allows you to shuttle between forward and reverse to maximize production.

Front Axle

JCB front axles are designed and built specifically for backhoe loaders and incorporate double reduction, outboard planetary drives, front and rear.

Rear Axle

JCB rear axles are designed and built specifically for backhoe loaders and accept a wide variety of tire combinations.

JCB 444 Engine

Four cylinder, direct injection diesel, spin-on oil filter, fuel filter with water separator, dual element air cleaner with aspiration system eliminating the need for a precleaner.

Engine Support System

Engine support system is designed for ease of daily checks, routine maintenance and longer service intervals. Fuel type: Diesel. Fuel filter: Replaceable spin-on cartridge with impermeable water separator. Air cleaner: Dual, dry element type. Oil filter and lubrication: Full flow, spin-on filter. Cooling system: Pressurized cooling system with integral recovery tank 14.5 psi (1.0 bar).

Smooth Ride System (Optional)

The JCB Smooth Ride System (SRS) consists of a accumulator installed in line with the loader lift cylinders. When activated, the Smooth Ride System allows the loader arms to float slightly. This action counteracts variations in road or site surfaces and provides the operator with a smooth ride. Activation: Electric switch on instrument panel. Manually controlled by the operator for maximum benefit and user flexibility.

Hydraulic System

Open center system gear pump system which supplies oil for loader, backhoe and steering systems. Side mounted hydraulic tank with sight glass and lockable cap. JCB cylinders, hydraulic hoses with abrasion protection.
