1260 D Huddig 1260 D Specifications & Technical Data (2018—2024)

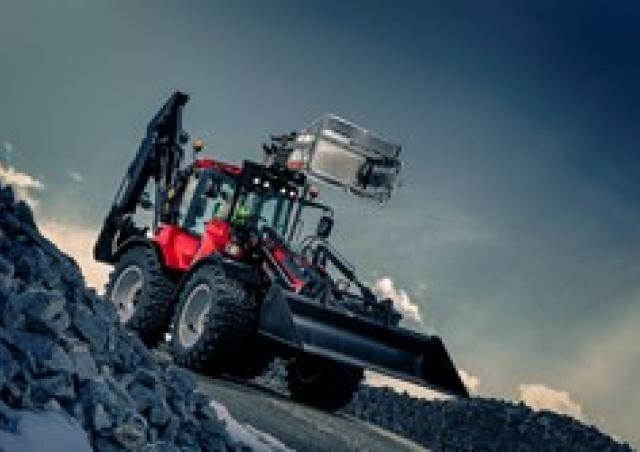

The Huddig 1260 D is a backhoe loader manufactured since 2018. It has a weight of 12.5 tons and a transport length of 8.63 meters.…

The Huddig 1260 D is a backhoe loader manufactured since 2018. It has a weight of 12.5 tons and a transport length of 8.63 meters. The bucket capacity is 2 cubic meters, with a tear-out force of 103 kilonewtons. It can dredge up to a depth of 5 meters and has a bucket width of 3 meters. The maximum discharge height is 3.5 meters, and it can reach horizontally up to 6.5 meters. The transport width is 2.489 meters, and the transport height is 3.11 meters. Special equipment includes air conditioning, forklift utility, grabber, and outrigger stabilizers.

1260 D

Years of manufacture: 2018—2024

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 1260 D Huddig

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 12.5 t

Standard tyres: 620/60x34

Bucket width: 3 m

Bucket capacity: 2 m³

Drive: A

Transport length: 8.63 m

Transport width: 2.49 m

Transport height: 3.11 m

Tear-out force: 103 kN

Max. Reach horizontal: 6.5 m

Dredging depth: 5 m

Max. discharge height: 3.5 m

Model series: 1260

Engine manuf.: Cummins

Engine type: QSB6.7

Engine power: 116 kW

Displacement: 6.7 l

Revolutions at max torque: 1900 rpm

Max. torque: 662/1400 Nm

No. of cylinders: 6

Emission level: Stufe IV

More technical details, like: bucket capacity backhoe, tear-out force backhoe, travel speed, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: No
Forklift utility: Yes
Grabber: Yes
Diesel particulate filter: No
Aircondition: Yes

Huddig 1260 D FAQ

When was the Huddig 1260 D manufactured?

The Huddig 1260 D was first produced in 2018.

How much does the Huddig 1260 D weigh?

The Huddig 1260 D weighs 12.5 tons.

What are the transport dimensions of the Huddig 1260 D backhoe loader?

The Huddig 1260 D has a transport length of 8.63 meters, a transport width of 2.49 meters, and a transport height of 3.11 meters.

What are the undercarriage specifications of the Huddig 1260 D backhoe loader?

The Huddig 1260 D has an all-wheel drive system and uses standard tyres sized 620/60x34.

What are the dredging depth and maximum horizontal reach of the Huddig 1260 D backhoe loader?

The Huddig 1260 D has a dredging depth of 5 meters and a maximum horizontal reach of 6.5 meters.

What is the tear-out force of the Huddig 1260 D backhoe loader?

The Huddig 1260 D has a tear-out force of 103 kN.

What is the maximum discharge height of the Huddig 1260 D?

The Huddig 1260 D has a maximum discharge height of 3.5 meters.

What are the specifications of the primary work tool bucket on the Huddig 1260 D backhoe loader?

The primary work tool bucket of the Huddig 1260 D has a capacity of 2 cubic meters and a width of 3 meters.
