1060 C Huddig 1060 C Specifications & Technical Data (2012—2014)

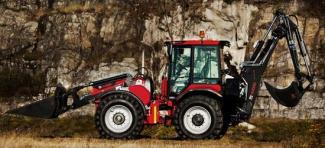

The Huddig 1060 C is a backhoe loader manufactured by Huddig from 2012 to 2014. It has a weight of 10.4 tons and a transport lengt…

The Huddig 1060 C is a backhoe loader manufactured by Huddig from 2012 to 2014. It has a weight of 10.4 tons and a transport length of 7.74 meters. The bucket capacity is 2 cubic meters, with a tear-out force of 63 kilonewtons. It can dredge up to a depth of 4 meters and has a bucket width of 2.5 meters. The maximum discharge height is 3.4 meters, and it has a maximum reach horizontal of 5.95 meters. The transport width is 2.29 meters, and the transport height is 3.95 meters. Special equipment includes air conditioning, forklift utility, grabber, and outrigger stabilizers.

1060 C

Years of manufacture: 2012—2014

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 1060 C Huddig

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 10.4 t

Standard tyres: 520/70x30

Bucket width: 2.5 m

Bucket capacity: 2 m³

Drive: A

Transport length: 7.74 m

Transport width: 2.29 m

Transport height: 3.95 m

Tear-out force: 63 kN

Max. Reach horizontal: 5.95 m

Dredging depth: 4 m

Max. discharge height: 3.4 m

Model series: 1260

Engine manuf.: Cummins

Engine type: QSB4.5

Engine power: 104 kW

Displacement: 4.5 l

Revolutions at max torque: 1500 rpm

More technical details, like: bucket capacity backhoe, tear-out force backhoe, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, backhoe type, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, torque rated speed, torque, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, length - roading, height - over cab, maximum height, width, ground clearance, backhoe quick-hitch, width - standard shovel, stabiliser type, maximum dig depth - longest dipper, dig depth - sae, reach from slew pivot - non-extending dipper, loading height - non-extending dipper, dump height - general purpose, dump angle - general purpose, turning radius kerb - 4wd not braked, fuel tank, shovel capacity - standard general purpose, shovel capacity - multi-purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: No
Forklift utility: Yes
Grabber: Yes
Diesel particulate filter: No
Aircondition: Yes

Download datasheets (PDF)

Huddig 1060 C FAQ

When was the Huddig 1060 C manufactured?

The Huddig 1060 C was manufactured from 2012 to 2014.

How much does the Huddig 1060 C backhoe loader weigh?

The Huddig 1060 C backhoe loader weighs 10.4 tons.

What are the transport dimensions of the Huddig 1060 C backhoe loader?

The Huddig 1060 C has a transport length of 7.74 meters, a transport width of 2.29 meters, and a transport height of 3.95 meters.

What are the undercarriage specifications of the Huddig 1060 C backhoe loader?

The Huddig 1060 C backhoe loader has an all-wheel drive system and uses standard tyres sized 520/70x30.

What are the excavation performance specifications of the Huddig 1060 C backhoe loader?

The Huddig 1060 C has a dredging depth of 4 meters and a maximum horizontal reach of 5.95 meters.

What is the tear-out force of the Huddig 1060 C backhoe loader?

The Huddig 1060 C backhoe loader has a tear-out force of 63 kN.

What is the maximum discharge height of the Huddig 1060 C?

The Huddig 1060 C has a maximum discharge height of 3.4 meters.

What are the specifications of the primary work tool bucket on the Huddig 1060 C backhoe loader?

The primary work tool bucket of the Huddig 1060 C has a capacity of 2 cubic meters and a width of 2.5 meters.
