FB 100.2 Fiat Kobelco FB 100.2 Specifications & Technical Data (2002—2005)

Model rating: 8,25 / 10

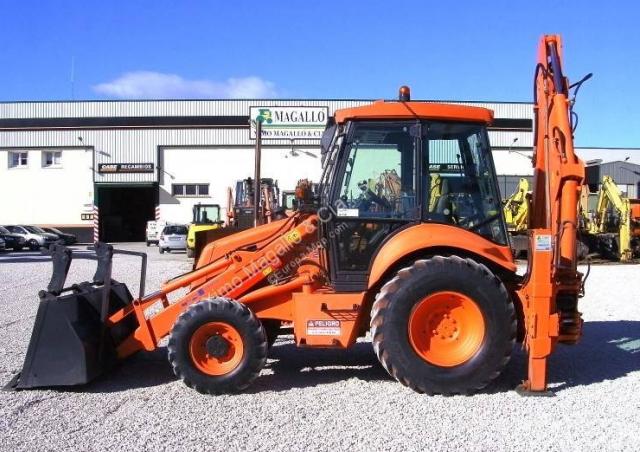

The Fiat Kobelco FB 100.2 is a backhoe loader manufactured from 2002 to 2005. It has a weight of 8.36 tons and a transport length …

The Fiat Kobelco FB 100.2 is a backhoe loader manufactured from 2002 to 2005. It has a weight of 8.36 tons and a transport length of 5.72 meters. The bucket capacity is 1 cubic meter. The transport width is 2.43 meters and the transport height is 3.89 meters. This construction machine is equipped with special equipment including a clamshell, forklift utility, and outrigger stabilizers.

FB 100.2

Years of manufacture: 2002—2005

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - FB 100.2 Fiat Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8.36 t

Standard tyres: 18.4-26/12.5-80

Bucket capacity: 1 m³

Drive: A

Transport length: 5.72 m

Transport width: 2.43 m

Transport height: 3.89 m

Model series: 2

Engine manuf.: CNH

Engine type: 450T-PD

Engine power: 81 kW

More technical details, like: bucket width, bucket capacity backhoe, tear-out force, tear-out force backhoe, max. reach horizontal, dredging depth, max. discharge height, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, backhoe type, engine manufacturer, engine model, aspiration, rated speed, engine output - net, engine output - gross, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, length - roading, height - over cab, maximum height, width, width - standard shovel, stabiliser type, maximum dig depth - longest dipper, dig depth - sae, dig depth - sae extended dipper, reach from slew pivot - non-extending dipper, reach from slew pivot - extended dipper, loading height - non-extending dipper, loading height - extended dipper, dump height - general purpose, dump angle - general purpose, dump height - multi-purpose, dump angle - multi-purpose, fuel tank, shovel capacity - standard general purpose, shovel capacity - multi-purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, shovel breakout - multi-purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: Yes
Forklift utility: Yes
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

FB 100.2 Fiat Kobelco Specification for Europe (DE)

Fiat Kobelco FB 100.2 FAQ

When was the Fiat Kobelco FB 100.2 manufactured?

The Fiat Kobelco FB 100.2 was manufactured from 2002 to 2005.

How much does the Fiat Kobelco FB 100.2 weigh?

The Fiat Kobelco FB 100.2 weighs 8.36 tons.

What are the transport dimensions of the Fiat Kobelco FB 100.2 backhoe loader?

The Fiat Kobelco FB 100.2 has a transport length of 5.72 meters, a transport width of 2.43 meters, and a transport height of 3.89 meters.

What are the undercarriage specifications of the Fiat Kobelco FB 100.2 backhoe loader?

The Fiat Kobelco FB 100.2 features an all-wheel drive system and standard tyres sized 18.4-26/12.5-80.

What is the bucket capacity of the Fiat Kobelco FB 100.2 backhoe loader?

The bucket capacity of the Fiat Kobelco FB 100.2 backhoe loader is 1 cubic meter.

How much is a Fiat Kobelco FB 100.2 Backhoe loader (2002u20132005) worth?

The residual value of the Fiat Kobelco FB 100.2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
