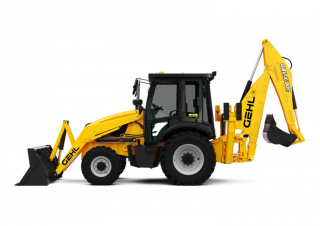

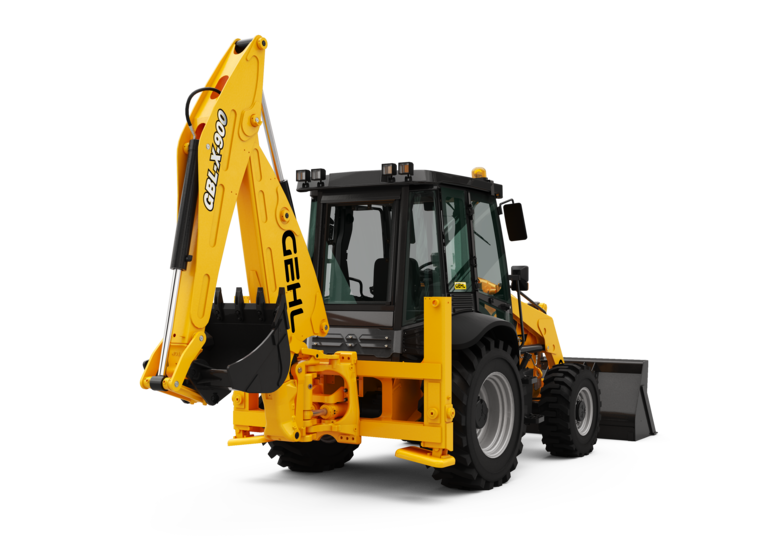

Gehl GBL-X 900
- Weight:
- 7.73 t
- Standard tyres:
- 12.5 x 18 - 12 PR / 16.9 x 28-12PR
- Bucket width:
- 0.722 m
- Bucket capacity:
- 1 m³
GBL-X 900 Gehl GBL-X 900 Specifications & Technical Data (2026—2026)
Technical specs - GBL-X 900 Gehl
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.73 t
- Standard tyres
- 12.5 x 18 - 12 PR / 16.9 x 28-12PR
- Bucket width
- 0.722 m
- Bucket capacity
- 1 m³
- Transport length
- 7.33 m
- Transport width
- 2.33 m
- Transport height
- 3.79 m
- Travel speed
- 40 km/h
- Model series
- GBL-X
- Engine manuf.
- Kirloskar
- Engine type
- 4R1040TA1
- Engine power
- 66 kW
- Displacement
- 4.15 l
- Max. torque
- 350 Nm
- Emission level
- TIER 3 (MAR-1) - BS-III
More technical details, like: bucket capacity backhoe, drive, tear-out force, tear-out force backhoe, max. reach horizontal, dredging depth, max. discharge height, dimension lxwxh, revolutions at max torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket
Special equipment
- Outrigger stabilisers
-
No
- Clamshell
-
No
- Forklift utility
-
No
- Grabber
-
No
- Diesel particulate filter
-
No
- Aircondition
-
No
