BL 844 Gehl BL 844 Specifications & Technical Data (2018—2026)

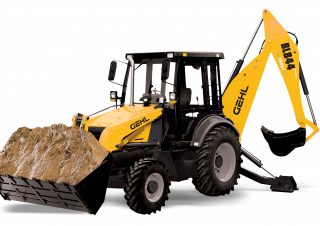

The Gehl BL 844 is a backhoe loader manufactured since 2018. It has a weight of 7.5 tons and a transport length of 7.338 meters. T…

The Gehl BL 844 is a backhoe loader manufactured since 2018. It has a weight of 7.5 tons and a transport length of 7.338 meters. The bucket capacity is 1 cubic meter, with a tear-out force of 46.64 kN. It can dredge up to a depth of 4.741 meters and has a bucket width of 2.33 meters. The maximum discharge height is 2.708 meters, and it can reach a maximum horizontal distance of 5.73 meters. The travel speed is 40 km/h. The transport width is 2.33 meters, and the transport height is 3.762 meters. Additionally, it has a backhoe bucket capacity of 0.24 cubic meters and a tear-out force of 51.18 kN.

Backhoe Loaders Gehl BL 844

Technical specs - BL 844 Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.5 t
Standard tyres
Front: 9 x 16 - 16 PR. Rear: 16.9 x 28 - 12 PR
Bucket width
2.33 m
Bucket capacity
1 m³
Bucket capacity backhoe
0.24 m³
Transport length
7.338 m
Transport width
2.33 m
Transport height
3.762 m
Tear-out force
46.64 kN
Tear-out force backhoe
51.18 kN
Max. Reach horizontal
5.73 m
Dredging depth
4.741 m
Max. discharge height
2.708 m
Travel speed
40 km/h
Model series
BL

More technical details, like: drive, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Gehl BL 844 FAQ

When was the Gehl BL 844 manufactured?

The Gehl BL 844 was first produced in 2018.

How much does the Gehl BL 844 backhoe loader weigh?

The Gehl BL 844 backhoe loader weighs 7.5 tons.

What are the transport dimensions of the Gehl BL 844 backhoe loader?

The Gehl BL 844 has a transport length of 7.34 meters, a transport width of 2.33 meters, and a transport height of 3.76 meters.

What is the travel speed of the Gehl BL 844 backhoe loader?

The Gehl BL 844 backhoe loader has a travel speed of 40 km/h.

What are the undercarriage tyre specifications of the Gehl BL 844 backhoe loader?

The Gehl BL 844 is equipped with front tyres sized 9 x 16 - 16 PR and rear tyres sized 16.9 x 28 - 12 PR.

What are the excavation performance specifications of the Gehl BL 844 backhoe loader?

The Gehl BL 844 has a dredging depth of 4.741 meters and a maximum horizontal reach of 5.73 meters.

What are the tear-out forces of the Gehl BL 844 backhoe loader?

The Gehl BL 844 has a tear-out force of 46.64 kN and a backhoe tear-out force of 51.18 kN.

What is the maximum discharge height of the material handling system on the Gehl BL 844?

The Gehl BL 844 has a maximum discharge height of 2.71 meters.

What are the specifications of the primary work tool bucket on the Gehl BL 844 backhoe loader?

The Gehl BL 844 features a front bucket with a capacity of 1 cubic meter and a width of 2.33 meters, and a backhoe bucket with a capacity of 0.24 cubic meters.
