430F2 Caterpillar 430F2 Specifications & Technical Data (2017—2026)

The Caterpillar 430F2 is a backhoe loader that has been manufactured since 2017. It has a weight of 7.77 tons and a transport leng…

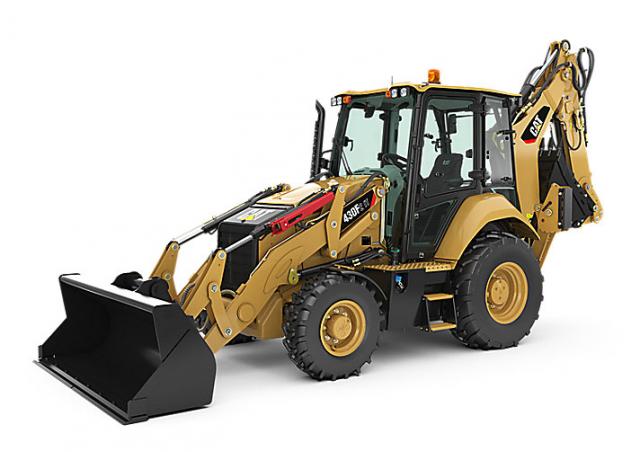

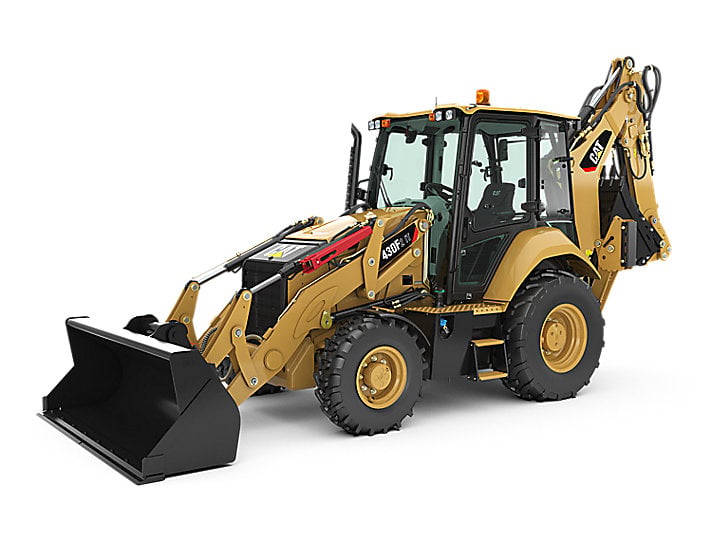

The Caterpillar 430F2 is a backhoe loader that has been manufactured since 2017. It has a weight of 7.77 tons and a transport length of 7.31 meters. The bucket capacity is 0.96 cubic meters, with a tear-out force of 49.8 kN. The dredging depth is 4.69 meters, and the bucket width is 2.26 meters. The maximum discharge height is 2.75 meters, and the maximum reach horizontal is 6.04 meters. The travel speed of this backhoe loader is 40 km/h. It has a transport width of 2.32 meters and a transport height of 3.58 meters. The tear-out force for the backhoe is 71.86 kN. Special equipment includes outrigger stabilizers.

Backhoe Loaders Caterpillar 430F2

Technical specs - 430F2 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.77 t
Standard tyres
12.5/80-18 (12 ply) 1-3/19.5L-24 (12 ply) ATU
Bucket width
2.26 m
Bucket capacity
0.96 m³
Drive
A/H
Transport length
7.31 m
Transport width
2.32 m
Transport height
3.58 m
Tear-out force
49.8 kN
Tear-out force backhoe
71.86 kN
Max. Reach horizontal
6.04 m
Dredging depth
4.69 m
Max. discharge height
2.75 m
Travel speed
40 km/h
Engine manuf.
Caterpillar
Engine type
C4.4 Acert
Engine power
80 kW
Displacement
4.4 l
Revolutions at max torque
1400 rpm
Max. torque
488 Nm
Cylinder bore x stroke
105x127 mm
Emission level
Tier 4 Final

More technical details, like: bucket capacity backhoe, model series, dimension lxwxh, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download specalog and datasheets (PDF)

Caterpillar 430F2 FAQ

When was the Caterpillar 430F2 manufactured?

The Caterpillar 430F2 was first produced in 2017.

How much does the Caterpillar 430F2 backhoe loader weigh?

The Caterpillar 430F2 backhoe loader weighs 7.77 tons.

What are the transport dimensions of the Caterpillar 430F2 backhoe loader?

The Caterpillar 430F2 has a transport length of 7.31 meters, a transport width of 2.32 meters, and a transport height of 3.58 meters.

What is the travel speed of the Caterpillar 430F2 backhoe loader?

The Caterpillar 430F2 backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the Caterpillar 430F2 backhoe loader?

The Caterpillar 430F2 backhoe loader features an all-wheel, rear wheel drive system and comes equipped with standard tyres sized 12.5/80-18 (12 ply) and 1-3/19.5L-24 (12 ply) ATU.

What is the excavation performance of the Caterpillar 430F2 backhoe loader?

The Caterpillar 430F2 has a dredging depth of 4.69 meters and a maximum horizontal reach of 6.04 meters.

What are the tear-out forces of the Caterpillar 430F2 backhoe loader?

The Caterpillar 430F2 has a tear-out force of 49.8 kN and a backhoe tear-out force of 71.86 kN.

What is the material handling capacity of the Caterpillar 430F2 in terms of maximum discharge height?

The Caterpillar 430F2 has a maximum discharge height of 2.75 meters for material handling.

What are the specifications of the primary work tool on the Caterpillar 430F2 backhoe loader?

The primary work tool of the Caterpillar 430F2 has a bucket capacity of 0.96 cubic meters and a bucket width of 2.26 meters.
