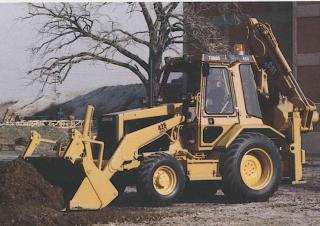

428 II Caterpillar 428 II Specifications & Technical Data (1990—2026)
Technical specs - 428 II Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.8 t
- Standard tyres
- F: 10.5x20 (10PR)/R: 16.9x28 (10PR)
- Bucket width
- 2.4 m
- Bucket capacity
- 1 m³
- Bucket capacity backhoe
- 0.07-0.34 m³
- Transport length
- 5.69 m
- Transport width
- 2.36 m
- Transport height
- 3.67 m
- Tear-out force
- 45.7 kN
- Tear-out force backhoe
- 46.4 kN
- Max. Reach horizontal
- 5.52 m
- Dredging depth
- 4.75 m
- Max. discharge height
- 2.64 m
- Travel speed
- 18.3 km/h
- Engine manuf.
- Perkins
- Engine type
- 4.236
- Engine power
- 57 kW
More technical details, like: drive, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket
Special equipment
- Outrigger stabilisers
-
No
- Clamshell
-
No
- Forklift utility
-
No
- Grabber
-
No
- Diesel particulate filter
-
No
- Aircondition
-
No
Download specalog and datasheets (PDF)
Caterpillar 428 II FAQ
How much does the Caterpillar 428 II backhoe loader weigh?
What are the transport dimensions of the Caterpillar 428 II backhoe loader?
What is the travel speed of the Caterpillar 428 II backhoe loader?
What are the undercarriage specifications of the Caterpillar 428 II backhoe loader?
What are the dredging depth and maximum horizontal reach of the Caterpillar 428 II backhoe loader?
What are the tear-out forces of the Caterpillar 428 II backhoe loader?
What is the maximum discharge height of the Caterpillar 428 II?
What are the specifications of the primary work tool bucket on the Caterpillar 428 II backhoe loader?
How much is a Caterpillar 428 II Backhoe loader (1990u20132025) worth?
