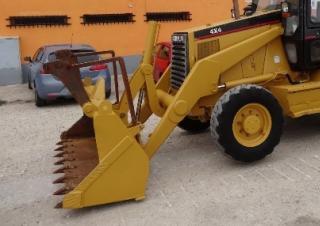

Caterpillar 428 B 4x4 Tele Backhoe Loader Specs & Dimensions (1992 - 1996)

Technical specs - 428 B 4x4 Tele Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8 t

Standard tyres: 16.9-28

Bucket capacity: 1 m³

Drive: A

Transport length: 5.7 m

Transport width: 2.4 m

Transport height: 3.75 m

Engine manuf.: Caterpillar

Engine type: 3054

Engine power: 58 kW

More technical details, like: bucket width, bucket capacity backhoe, tear-out force, tear-out force backhoe, max. reach horizontal, dredging depth, max. discharge height, travel speed, model series, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: bucket width, bucket capacity backhoe, tear-out force, tear-out force backhoe, max. reach horizontal, dredging depth, max. discharge height, travel speed, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, backhoe type, engine manufacturer, engine model, aspiration, rated speed, engine output - net, engine output - gross, transmission type, number of travel speeds, service brake type, height - over cab, width, ground clearance, width - standard shovel, reach from slew pivot - non-extending dipper, reach from slew pivot - retracted dipper, reach from slew pivot - extended dipper, loading height - non-extending dipper, loading height - retracted dipper, loading height - extended dipper, dump height - general purpose, dump angle - general purpose, dump height - multi-purpose, dump angle - multi-purpose, fuel tank, shovel capacity - standard general purpose, shovel capacity - multi-purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, shovel breakout - multi-purpose are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Caterpillar 428 B 4x4 Tele FAQ

When was the Caterpillar 428 B 4x4 Tele manufactured?

The Caterpillar 428 B 4x4 Tele was manufactured from 1992 to 1996.

What is the weight of the Caterpillar 428 B 4x4 Tele backhoe loader?

The Caterpillar 428 B 4x4 Tele backhoe loader weighs 8 tons.

What are the transport dimensions of the Caterpillar 428 B 4x4 Tele backhoe loader?

The Caterpillar 428 B 4x4 Tele has a transport length of 5.7 meters, a transport width of 2.4 meters, and a transport height of 3.75 meters.

What are the undercarriage specifications of the Caterpillar 428 B 4x4 Tele backhoe loader?

The Caterpillar 428 B 4x4 Tele backhoe loader has an all-wheel drive system and is equipped with standard tyres sized 16.9-28.

What is the bucket capacity of the Caterpillar 428 B 4x4 Tele backhoe loader?

The bucket capacity of the Caterpillar 428 B 4x4 Tele backhoe loader is 1 cubic meter.

How much is a Caterpillar 428 B 4x4 Tele Backhoe loader (1992u20131996) worth?

The residual value of the Caterpillar 428 B 4x4 Tele depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
