680 Case 680 Specifications & Technical Data (1966—2010)

The Case 680 is a backhoe loader manufactured by Case since 1966. It has a weight of 5.681 tons and a transport length of 4.8 mete…

The Case 680 is a backhoe loader manufactured by Case since 1966. It has a weight of 5.681 tons and a transport length of 4.8 meters. The bucket capacity is 1.15 cubic meters, with a dredging depth of 4.3 meters and a bucket width of 2.34 meters. It has a maximum reach horizontal of 6.26 meters and a travel speed of 27.4 kilometers per hour. The transport width is 2.08 meters and the transport height is 1.98 meters. The tear-out force of the backhoe is 133.4 kilonewtons.

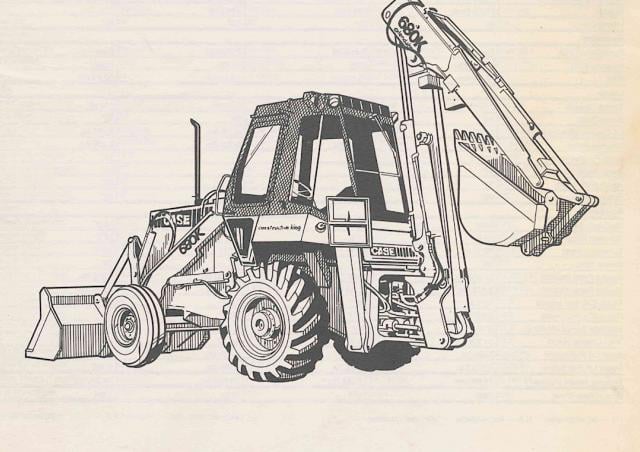

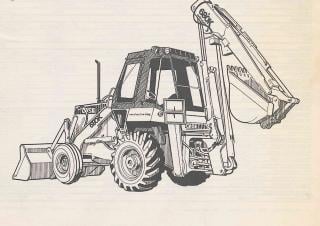

Backhoe Loaders Case 680

Technical specs - 680 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.681 t
Standard tyres
11.00x16. 10PR
Bucket width
2.34 m
Bucket capacity
1.15 m³
Transport length
4.8 m
Transport width
2.08 m
Transport height
1.98 m
Tear-out force backhoe
133.4 kN
Max. Reach horizontal
6.26 m
Dredging depth
4.3 m
Travel speed
27.4 km/h
Engine manuf.
Case
Engine type
267D
Engine power
53 kW
Displacement
4.4 l
No. of cylinders
4
Cylinder bore x stroke
102x127 mm

More technical details, like: bucket capacity backhoe, drive, tear-out force, max. discharge height, model series, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Case 680 FAQ

When was the Case 680 backhoe loader manufactured?

The Case 680 backhoe loader was first produced in 1966.

How much does the Case 680 backhoe loader weigh?

The Case 680 backhoe loader weighs 5.68 tons.

What are the transport dimensions of the Case 680 backhoe loader?

The Case 680 backhoe loader has a transport length of 4.8 meters, a transport width of 2.08 meters, and a transport height of 1.98 meters.

What is the travel speed of the Case 680 backhoe loader?

The Case 680 backhoe loader has a travel speed of 27.4 km/h.

What are the standard tyre specifications for the Case 680 backhoe loader?

The Case 680 backhoe loader comes with standard tyres sized 11.00x16. 10PR.

What are the excavation performance specifications of the Case 680 backhoe loader?

The Case 680 backhoe loader has a dredging depth of 4.3 meters and a maximum horizontal reach of 6.26 meters.

What is the tear-out force of the Case 680 backhoe loader?

The Case 680 backhoe loader has a tear-out force of 133.4 kN.

What are the specifications of the primary work tool bucket on the Case 680 backhoe loader?

The primary work tool bucket of the Case 680 has a capacity of 1.15 cubic meters and a width of 2.34 meters.

How much is a Case 680 Backhoe loader (1966u20132025) worth?

The residual value of the Case 680 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
