580 Super L Case 580 Super L Specifications & Technical Data (1996—2005)

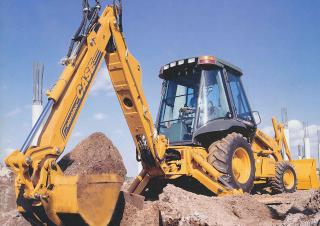

The Case 580 Super L is a backhoe loader manufactured by Case from 1996 to 2005. It has a weight of 6.025 tons and a transport len…

The Case 580 Super L is a backhoe loader manufactured by Case from 1996 to 2005. It has a weight of 6.025 tons and a transport length of 6.88 meters. The bucket capacity is 0.77 cubic meters, with a tear-out force of 45.792 kilonewtons. The dredging depth is 4.35 meters, and the bucket width is 2.08 meters. The maximum discharge height is 4.04 meters, and the maximum reach horizontal is 7.75 meters. It has a travel speed of 49.9 kilometers per hour. The transport width is 2.18 meters, and the transport height is 3.3 meters. The backhoe has a bucket capacity of 0.08 cubic meters and a tear-out force of 58.39 kilonewtons. It also includes special equipment such as forklift utility and outrigger stabilizers.

Backhoe Loaders Case 580 Super L

Visit Case live at

Technical specs - 580 Super L Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.025 t
Standard tyres
19.5Lx24
Bucket width
2.08 m
Bucket capacity
0.77 m³
Bucket capacity backhoe
0.08 m³
Transport length
6.88 m
Transport width
2.18 m
Transport height
3.3 m
Tear-out force
45.792 kN
Tear-out force backhoe
58.39 kN
Max. Reach horizontal
7.75 m
Dredging depth
4.35 m
Max. discharge height
4.04 m
Travel speed
49.9 km/h
Model series
Super
Engine manuf.
Case
Engine type
4T 390
Engine power
68 kW
Displacement
3.92 l
Max. torque
351 Nm
No. of cylinders
4
Cylinder bore x stroke
102x120 mm

More technical details, like: drive, dimension lxwxh, revolutions at max torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
No
Forklift utility
Yes
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Case 580 Super L FAQ

When was the Case 580 Super L manufactured?

The Case 580 Super L was manufactured from 1996 to 2005.

How much does the Case 580 Super L weigh?

The Case 580 Super L weighs 6.03 tons.

What are the transport dimensions of the Case 580 Super L backhoe loader?

The Case 580 Super L has a transport length of 6.88 meters, a transport width of 2.18 meters, and a transport height of 3.3 meters.

What is the travel speed of the Case 580 Super L backhoe loader?

The Case 580 Super L backhoe loader has a travel speed of 49.9 km/h.

What are the undercarriage specifications of the Case 580 Super L backhoe loader?

The Case 580 Super L backhoe loader has standard tyres sized 19.5Lx24.

What is the excavation performance of the Case 580 Super L backhoe loader?

The Case 580 Super L backhoe loader has a dredging depth of 4.35 meters and a maximum horizontal reach of 7.75 meters.

What are the tear-out forces of the Case 580 Super L backhoe loader?

The Case 580 Super L has a tear-out force of 45.792 kN and a backhoe tear-out force of 58.39 kN.

What is the maximum discharge height of the Case 580 Super L backhoe loader?

The Case 580 Super L backhoe loader has a maximum discharge height of 4.04 meters.

What are the specifications of the primary work tool on the Case 580 Super L backhoe loader?

The Case 580 Super L features a bucket with a capacity of 0.77 cubic meters and a width of 2.08 meters, along with a backhoe bucket capacity of 0.08 cubic meters.

How much is a Case 580 Super L Backhoe loader (1996u20132005) worth?

The residual value of the Case 580 Super L depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
