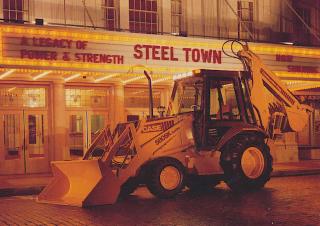

580 SK Turbo Case 580 SK Turbo Specifications & Technical Data (1993—2020)
Technical specs - 580 SK Turbo Case
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 6.09 t
- Standard tyres
- 17.5Lx24 R4
- Bucket width
- 2.08 m
- Bucket capacity
- 0.79 m³
- Bucket capacity backhoe
- 0.08 m³
- Transport length
- 6.88 m
- Transport width
- 2.18 m
- Transport height
- 2.67 m
- Tear-out force
- 40.03 kN
- Tear-out force backhoe
- 47.863 kN
- Max. Reach horizontal
- 7.76 m
- Dredging depth
- 5.54 m
- Max. discharge height
- 3.63 m
- Travel speed
- 47.8 km/h
- Model series
- SK
- Engine manuf.
- Case
- Engine type
- 4T 390
- Engine power
- 63 kW
- Displacement
- 3.92 l
- Max. torque
- 317 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 102x120 mm
More technical details, like: drive, dimension lxwxh, revolutions at max torque, emission level are available in the full technical specs.
Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket
Special equipment
- Outrigger stabilisers
-
Yes
- Clamshell
-
No
- Forklift utility
-
Yes
- Grabber
-
No
- Diesel particulate filter
-
No
- Aircondition
-
No
