TA 40-7 Terex TA 40-7 Specifications & Technical Data (2005—2010)

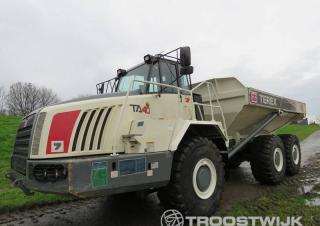

Manufactured by Terex, this is the TA 40-7 articulated dump truck. Find and download detailed specs and data sheets for this machi…

Manufactured by Terex, this is the TA 40-7 articulated dump truck. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful MTU engine, this TA 40-7 30.8t machine can provide 336kW or 450 horse power for the articulated dump truck. The Terex TA 40-7 can be grouped in the biggest machine segment in the articulated dump trucks category. The model's dimensions are 10.94m x 3.36m x 3.94m.

The TA 40-7 is manufactured and distributed with Aircondition. It does not include Tailgate, Diesel particulate filter and Central lubrication. There are more detailed specifications and machine descriptions available in the original Terex TA 40-7 specs data sheet.

The production stopped in 2010, where this TA 40-7 was available at a new list price between €379000 and €483000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 3 other articulated dump trucks, which range from 22.2t up to 30.8t are produced by Terex. Of these, TA 250, TA 300 and also TA 400 are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest Terex TA 40-7 specs data sheet on LECTURA Specs today!

TA 40-7

Years of manufacture: 2005—2010

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TA 40-7 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 30.8 t

Standard tyres: 29.5 R 25

Dump capacity: 23.3 m³

Travel speed: 60 km/h

Net load: 38 t

Transport length: 10.94 m

Transport width: 3.36 m

Transport height: 3.94 m

Turning radius outside: 9.19 m

Loading height: 3.14 m

Model series: TA

Engine manuf.: MTU

Engine type: Serie 60

Engine power: 336 kW

Displacement: 14 l

Revolutions at max torque: 1350 rpm

More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, engine manufacturer, engine model, emission rating, number of cylinders, rated speed, engine output - net, engine output - gross, torque, drive configuration, transmission type, transmission manufacturer, transmission model, final drive, tyre - size, tyre - type, front suspension - type, front suspension, rear suspension - type, rear suspension, service brake - type, length - overall, height - over cab, height - max, ground clearance, width - over tyres, width - transport, width - operating, wheelbase, length - body, loading height, full dump height, hoist - type, hoist - angle, articulation angle, turning radius - outside, turning radius - inside, fuel tank, heaped capacity, cycle time - raise, unladen axle load - front, unladen axle load - centre, unladen axle load - rear, unladen axle load - centre + rear, laden axle load - front, laden axle load - centre, laden axle load - rear, laden axle load - centre + rear, speed - forward maximum, net weight, payload, gross weight are available in the full technical specs.

Special equipment

Diesel particulate filter: No
Central lubrication: No
Heated dump body: No
Tailgate: No
Aircondition: Yes

Terex TA 40-7 FAQ

When was the Terex TA 40-7 manufactured?

The Terex TA 40-7 was manufactured from 2005 to 2010.

How much does the Terex TA 40-7 weigh?

The Terex TA 40-7 weighs 30.8 tons.

What are the transport dimensions of the Terex TA 40-7 articulated dump truck?

The Terex TA 40-7 has a transport length of 10.94 meters, a transport width of 3.36 meters, and a transport height of 3.94 meters.

What is the travel speed of the Terex TA 40-7 articulated dump truck?

The Terex TA 40-7 has a travel speed of 60 km/h.

What are the undercarriage specifications of the Terex TA 40-7 articulated dump truck?

The Terex TA 40-7 articulated dump truck is equipped with standard tyres sized 29.5 R 25.

What is the outside turning radius of the Terex TA 40-7 articulated dump truck?

The Terex TA 40-7 has an outside turning radius of 9.19 meters.

What is the material handling capacity of the Terex TA 40-7 articulated dump truck?

The Terex TA 40-7 has a net load capacity of 38 tons, a dump capacity of 23.3 cubic meters, and a loading height of 3.14 meters.

How much is a Terex TA 40-7 Articulated dump truck (2005u20132010) worth?

The residual value of the Terex TA 40-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
