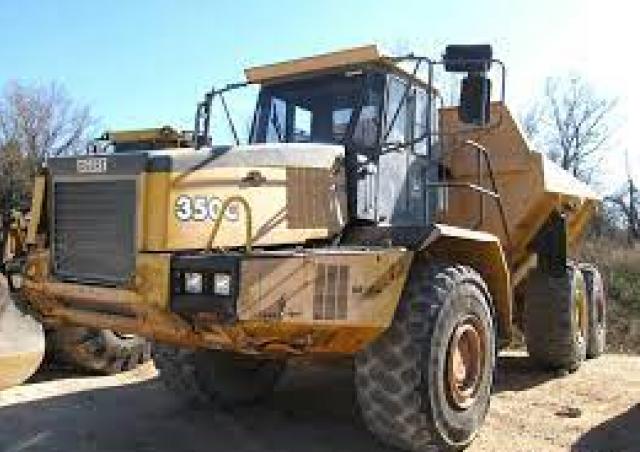

350C John Deere Construction 350C Specifications & Technical Data (2000—2001)
Technical specs - 350C John Deere Construction
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 26.89 t
- Standard tyres
- 26.5 R25
- Dump capacity
- 15 m³
- Travel speed
- 50 km/h
- Net load
- 32 t
- Transport length
- 10.55 m
- Transport width
- 3.2 m
- Transport height
- 3.63 m
- Turning radius outside
- 9.09 m
- Loading height
- 2.15 m
- Model series
- C
- Engine manuf.
- DaimlerChrysler
- Engine type
- OM442A
- Engine power
- 250 kW
- Displacement
- 14.6 l
- Max. torque
- 1600 Nm
- No. of cylinders
- 8
- Emission level
- EPA Tier 3
More technical details, like: dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.
Special equipment
- Diesel particulate filter
-
Yes
- Central lubrication
-
No
- Heated dump body
-
No
- Tailgate
-
No
- Aircondition
-
Yes
Download datasheets (PDF)
