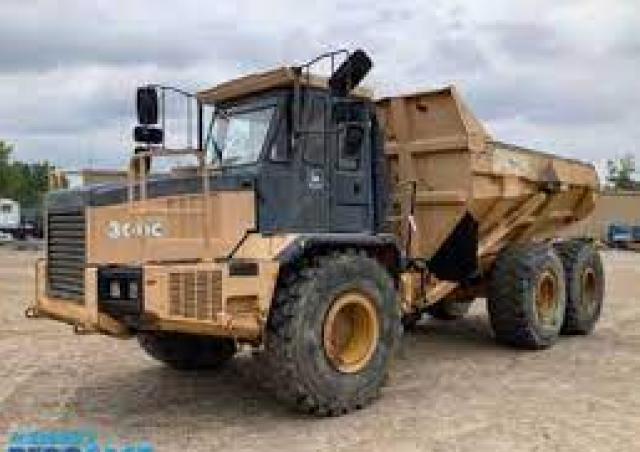

300C John Deere Construction 300C Specifications & Technical Data (2000—2006)
Technical specs - 300C John Deere Construction
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 19.32 t
- Standard tyres
- 23.5 R25
- Dump capacity
- 13 m³
- Travel speed
- 47 km/h
- Net load
- 27 t
- Transport length
- 9.21 m
- Transport width
- 2.95 m
- Transport height
- 3.42 m
- Turning radius outside
- 9.09 m
- Loading height
- 2.01 m
- Model series
- C
- Engine manuf.
- DaimlerChrysler
- Engine type
- OM442
- Engine power
- 187 kW
- Displacement
- 15.1 l
- Max. torque
- 980 Nm
- No. of cylinders
- 8
- Emission level
- EPA Tier 4/EU Stage IIIB
More technical details, like: dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.
Special equipment
- Diesel particulate filter
-
Yes
- Central lubrication
-
No
- Heated dump body
-
No
- Tailgate
-
No
- Aircondition
-
Yes
Download datasheets (PDF)
John Deere Construction 300C FAQ
How much does the John Deere Construction 300C weigh?
What are the transport dimensions of the John Deere Construction 300C articulated dump truck?
What is the travel speed of the John Deere Construction 300C articulated dump truck?
What is the size of the standard tyres on the John Deere Construction 300C articulated dump truck?
What is the turning radius of the John Deere Construction 300C articulated dump truck?
What is the material handling capacity of the John Deere Construction 300C articulated dump truck?
How much is a John Deere Construction 300C Articulated dump truck (2000u20132006) worth?
