MT 36 Doosan-Moxy MT 36 Specifications & Technical Data (2008—2011)

Doosan-Moxy is the manufacturer of the articulated dump truck model MT 36. Find and download detailed specs and data sheets for th…

Doosan-Moxy is the manufacturer of the articulated dump truck model MT 36. Find and download detailed specs and data sheets for this machine here.

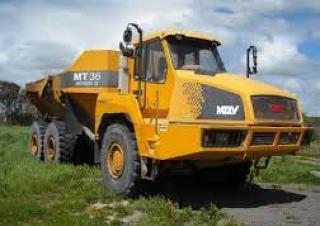

The Doosan-Moxy MT 36 is a 26.5t machine with Scania engine which powers this model with up to 294kW or 394 horse power. The Doosan-Moxy MT 36 can be grouped in the medium sized machine segment in the articulated dump trucks category. The model's dimensions are 10.445m x 3.275m x 3.7m.

The MT 36 is manufactured and distributed with Tailgate, Aircondition and Central lubrication. Diesel particulate filter are not provided on this model as of 2011. There are more detailed specifications and machine descriptions available in the original Doosan-Moxy MT 36 specs data sheet. You can download it for free in English on LECTURA Specs.

This model can be acquired for a list price between €501000 and €637000. Production of the MT 36 stopped in 2011. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Doosan-Moxy models of this type on LECTURA Specs are the, and other articulated dump trucks, which currently range from up to are also available. Want more detailed specifications? Download the latest Doosan-Moxy MT 36 specs data sheet on LECTURA Specs today!

MT 36

Years of manufacture: 2008—2011

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - MT 36 Doosan-Moxy

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 26.5 t

Standard tyres: 26.5-25

Dump capacity: 21 m³

Travel speed: 55 km/h

Net load: 32.7 t

Transport length: 10.445 m

Transport width: 3.275 m

Transport height: 3.7 m

Turning radius outside: 8.75 m

Model series: MT

Engine manuf.: Scania

Engine type: DC 12

Engine power: 294 kW

Displacement: 11.7 l

Revolutions at max torque: 2200 rpm

More technical details, like: loading height, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, engine manufacturer, engine model, number of cylinders, rated speed, engine output - net, engine output - gross, drive configuration, transmission type, transmission manufacturer, tyre - size, tyre - type, length - overall, height - max, ground clearance, width - over tyres, width - operating, loading height, full dump height, hoist - type, hoist - angle, articulation angle, turning radius - outside, turning radius - inside, fuel tank, heaped capacity, cycle time - raise, net weight, payload, gross weight are available in the full technical specs.

Special equipment

Diesel particulate filter: No
Central lubrication: Yes
Heated dump body: Yes
Tailgate: Yes
Aircondition: Yes

Download datasheets (PDF)

MT 36 Doosan-Moxy Specification for Europe (EN)

Doosan-Moxy MT 36 FAQ

When was the Doosan-Moxy MT 36 manufactured?

The Doosan-Moxy MT 36 was manufactured from 2008 to 2011.

How much does the Doosan-Moxy MT 36 weigh?

The Doosan-Moxy MT 36 weighs 26.5 tons.

What are the transport dimensions of the Doosan-Moxy MT 36 articulated dump truck?

The Doosan-Moxy MT 36 has a transport length of 10.45 meters, a transport width of 3.28 meters, and a transport height of 3.7 meters.

What is the travel speed of the Doosan-Moxy MT 36 articulated dump truck?

The Doosan-Moxy MT 36 has a travel speed of 55 km/h.

What are the undercarriage specifications of the Doosan-Moxy MT 36 articulated dump truck?

The Doosan-Moxy MT 36 articulated dump truck is equipped with standard tyres sized 26.5-25.

What is the turning radius of the Doosan-Moxy MT 36 articulated dump truck?

The Doosan-Moxy MT 36 has an outside turning radius of 8.75 meters.

What is the material handling capacity of the Doosan-Moxy MT 36 articulated dump truck?

The Doosan-Moxy MT 36 has a net load capacity of 32.7 tons and a dump capacity of 21 cubic meters.
