AD 30 Astra AD 30 Specifications & Technical Data (2006—2011)

The AD 30 articulated dump truck model is manufactured by Astra. Find and download detailed specs and data sheets for this machine…

The AD 30 articulated dump truck model is manufactured by Astra. Find and download detailed specs and data sheets for this machine here.

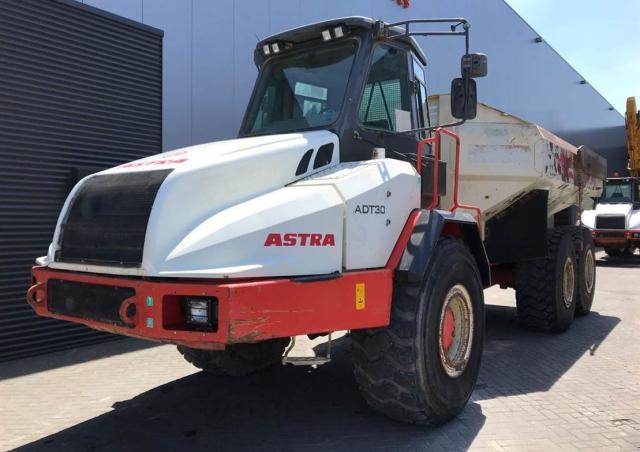

The Astra AD 30 is a 22.57t machine with Iveco engine which powers this model with up to 260kW or 348 horse power. The AD 30 is categorised in the medium sized machine segment in the articulated dump trucks category. The model's dimensions are 10.031m x 3.651m x (no data).

Since 2006, this model has included Tailgate, Central lubrication and Aircondition. Bin heating and Diesel particulate filter are not provided on this model as of 2011. There are more detailed specifications and machine descriptions available in the original Astra AD 30 specs data sheet.

This model can be acquired for a list price between €194000 and €247000. Production of the AD 30 stopped in 2011. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, other articulated dump trucks, which range from up to are produced by Astra. Of these, are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest Astra AD 30 specs data sheet on LECTURA Specs today!

AD 30

Years of manufacture: 2006—2011

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - AD 30 Astra

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 22.57 t

Standard tyres: 23.5 R 26

Dump capacity: 17.6 m³

Travel speed: 46.6 km/h

Net load: 28.16 t

Transport length: 10.031 m

Transport width: 3.651 m

Loading height: 2.956 m

Model series: AD

Engine manuf.: Iveco

Engine type: Cursor 10F

Engine power: 260 kW

Displacement: 10.3 l

Revolutions at max torque: 1900 rpm

Emission level: TIII

More technical details, like: transport height, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Special equipment

Diesel particulate filter: No
Central lubrication: Yes
Heated dump body: No
Tailgate: Yes
Aircondition: Yes

Astra AD 30 FAQ

When was the Astra AD 30 manufactured?

The Astra AD 30 was manufactured from 2006 to 2011.

How much does the Astra AD 30 weigh?

The Astra AD 30 weighs 22.57 tons.

What are the transport dimensions of the Astra AD 30 articulated dump truck?

The Astra AD 30 has a transport length of 10.03 meters and a transport width of 3.65 meters.

What is the travel speed of the Astra AD 30 articulated dump truck?

The Astra AD 30 articulated dump truck has a travel speed of 46.6 km/h.

What are the undercarriage specifications of the Astra AD 30 articulated dump truck?

The Astra AD 30 articulated dump truck is equipped with standard tyres sized 23.5 R 26.

What is the material handling capacity of the Astra AD 30 articulated dump truck?

The Astra AD 30 has a net load capacity of 28.16 tons, a dump capacity of 17.6 cubic meters, and a loading height of 2.96 meters.

How much is a Astra AD 30 Articulated dump truck (2006u20132011) worth?

The residual value of the Astra AD 30 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
