541-70 AGRI Super JCB 541-70 AGRI Super Specifications & Technical Data (2006—2014)

JCB is the manufacturer of the telehandler model 541-70. Find and download detailed specs and data sheets for this machine here. …

JCB is the manufacturer of the telehandler model 541-70. Find and download detailed specs and data sheets for this machine here.

This telehandler is built to provide up to 108kW or 144 horse power, delivered from its powerful JCB engine to the 7.8t 541-70 machine. This JCB telehandler belongs to the biggest machine segment in the telehandlers category. The 541-70’s size is 2.23m x 4.99m x 2.49m. Standard tyres for this JCB 541-70 telehandler have a size of 445/70R24. It can operate with up to 3,7m of horizontal reach. 4.1t is its maximum nominal load capacity with a 500mm center of gravity. This telehandler from JCB is able to work with 2.5t capacity at up to 7m height. The capacity of this model at full forward reach is 1.5t.

It does not include Diesel particulate filter, StVZO Equipment and Inclination correction. There are more detailed specifications and machine descriptions available in the original JCB 541-70 specs data sheet. You can download it for free in French, English, German, Spanish and Italian on LECTURA Specs.

This model can be acquired for a list price between €107,000 and €136,000. Production of the 541-70 stopped in 2014. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Comparisons of the 541-70 JCB with other telehandler models reveal that, based on specifications and pricing, the model is similar to the Dieci Icarus 40.16 TA, Claas Scorpion 9040 as well as Dieci Icarus 40.17-93. The most commonly viewed JCB models of this type on LECTURA Specs are the 516-40, 520-50 and 525-60 HiViz, and 70 other telehandlers, which currently range from 1.6t up to 6t are also available. Want more detailed specifications? Download the latest JCB 541-70 specs data sheet on LECTURA Specs today!

Yard loader JCB 541-70 AGRI Super
Yard loader JCB 541-70 AGRI Super
Yard loader JCB 541-70 AGRI Super
Yard loader JCB 541-70 AGRI Super
Yard loader JCB 541-70 AGRI Super
Yard loader JCB 541-70 AGRI Super
Yard loader JCB 541-70 AGRI Super
Yard loader JCB 541-70 AGRI Super
Yard loader JCB 541-70 AGRI Super
Yard loader JCB 541-70 AGRI Super
Yard loader JCB 541-70 AGRI Super
Yard loader JCB 541-70 AGRI Super
Yard loader JCB 541-70 AGRI Super
Yard loader JCB 541-70 AGRI Super
Yard loader JCB 541-70 AGRI Super
Yard loader JCB 541-70 AGRI Super
Yard loader JCB 541-70 AGRI Super
Yard loader JCB 541-70 AGRI Super
Yard loader JCB 541-70 AGRI Super
Yard loader JCB 541-70 AGRI Super
Yard loader JCB 541-70 AGRI Super
Yard loader JCB 541-70 AGRI Super

Visit JCB live at

Technical specs - 541-70 AGRI Super JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.8 t
Standard tyres
445/70R24
Transport length
4.99 m
Transport width
2.23 m
Transport height
2.49 m
Model series
541
Engine manuf.
JCB
Engine type
EcoMax
Engine power
108 kW
Displacement
4.8 l
No. of cylinders
4
Cylinder bore x stroke
106x135 mm
Emission level
Euro III B

More technical details, like: operating weight, tipping load, wheel base, travel speed, steering mode, max. height at the shovel pivot point, overcharging height, max. discharge height, turning radius outside, turning radius inside, dimension lxwxh, revolutions at max torque...

More technical details, like: operating weight, tipping load, wheel base, travel speed, steering mode, max. height at the shovel pivot point, overcharging height, max. discharge height, turning radius outside, turning radius inside, dimension lxwxh, revolutions at max torque, max. torque, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, attachment quickhitch, telematics available, platform, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - gross, torque, tyre - front size, tyre - rear size, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, number of boom sections, load centre, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, speed - reverse maximum, operating weight are available in the full technical specs.

Special equipment

Cabin
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB 541-70 AGRI Super FAQ

When was the JCB 541-70 AGRI Super manufactured?

The JCB 541-70 AGRI Super was manufactured from 2006 to 2014.

What is the weight of the JCB 541-70 AGRI Super?

The JCB 541-70 AGRI Super has a weight of 7.8 tonnes.

What are the transport dimensions of the JCB 541-70 AGRI Super?

The JCB 541-70 AGRI Super has a transport length of 4.99 meters, a transport width of 2.23 meters, and a transport height of 2.49 meters.

What are the standard tyre specifications for the JCB 541-70 AGRI Super?

The JCB 541-70 AGRI Super is equipped with standard tyres sized 445/70R24.

How much is a JCB 541-70 AGRI Super Yard loader (2006u20132014) worth?

The residual value of the JCB 541-70 AGRI Super depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Events

Visit JCB live at

Buy & Rent

Compare JCB 541-70 AGRI Super with similar Yard loader

JCB 541-70 AGRI Super

JCB 541-70 AGRI Super

Weight:
7.8 t
Standard tyres:
445/70R24
Transport length:
4.99 m
Transport width:
2.23 m
JCB 525-58

JCB 525-58

Weight:
6.3 t
Standard tyres:
15.5/80-24

Do you want to see more detailed comparison?

Show me!

Sell JCB 541-70 AGRI Super

Yard loader appraisal with LECTURA Valuation

Valuation

Whether you need to calculate value of your JCB 541-70 AGRI Super or valuation of your Yard loader fleet, LECTURA Valuation will help. Simply fill the machine information and see the price for Yard loader in few clicks.

Valuate right now!

Data provided by Lectura logo

Spare parts & Components

Get spare parts for JCB 541-70 AGRI Super easily from our partners

Spare parts

Do your lookup for high quality parts for JCB 541-70 AGRI Super online!
With a few, easy steps, you will find generic and genuine parts and replacements in well-catalogued lists. Wether you are dealer or an owner, LECTURA can lead you to the right direction.
Check the best offers from our partners and order the Yard loader spare parts easily today - worldwide.

Get parts for JCB 541-70 AGRI Super now!

Transport

Yard loader Transport & Shipping Services

In case you look for a transport your machine, apply our services. Seek for favourable transport quotes for Yard loader based on transport dimensions and weights. Our partners provide large-scale services to fit your needs.

Ask for transport price

Data provided by Lectura logo

News

Agriculture News by LECTURA 26.06.2026

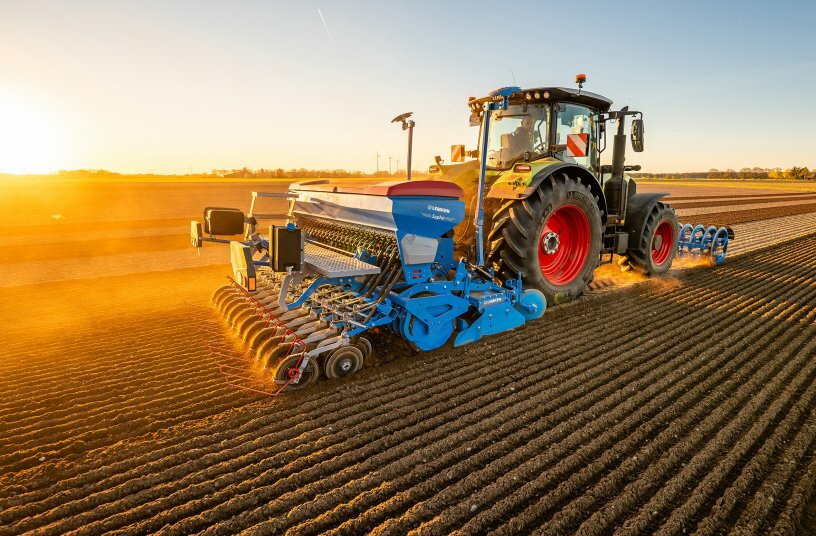

LEMKEN takes mechanical seed drill technology to the next level
