516-40 JCB Telehandler Specs & Dimensions (2014 - 2021)

Model rating: 7,00 / 10

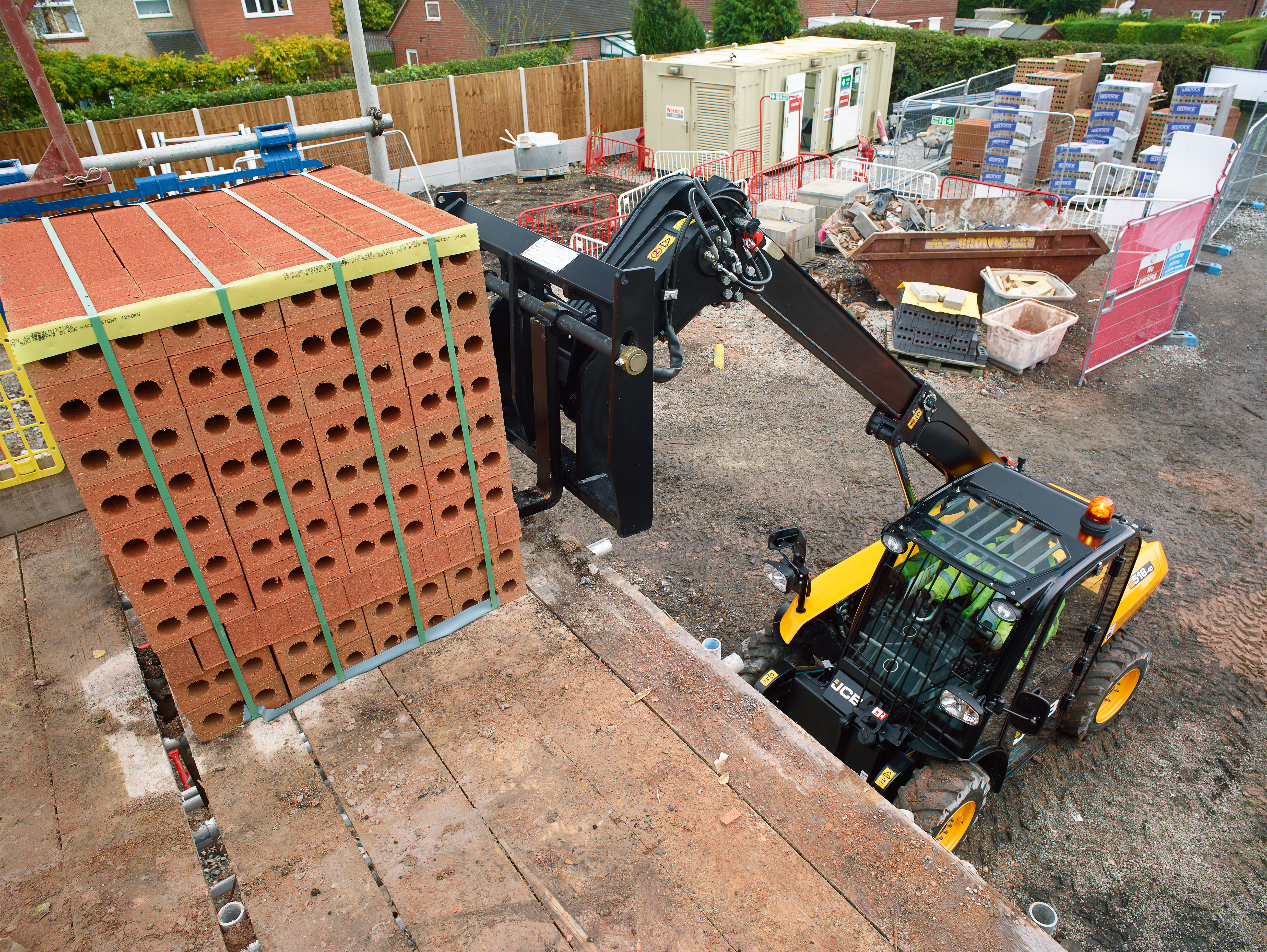

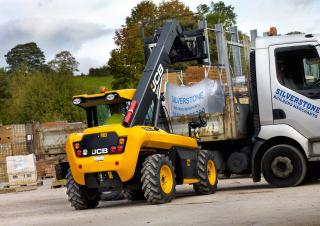

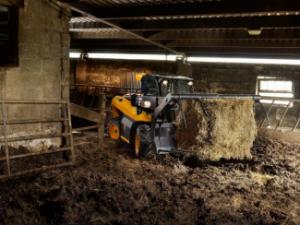

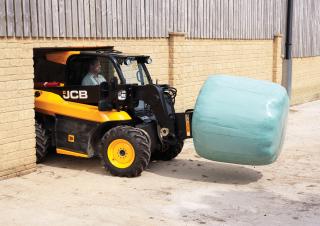

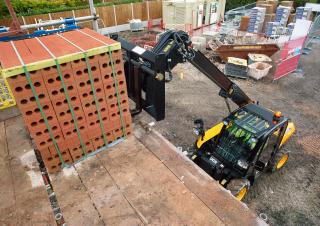

The JCB 516-40 is a telehandler manufactured by JCB from 2014 to 2021. It has a weight of 3.421 tons and a transport length of 3.2…

The JCB 516-40 is a telehandler manufactured by JCB from 2014 to 2021. It has a weight of 3.421 tons and a transport length of 3.23 meters. The telehandler has a nominal load at the center of gravity of 1.6 tons and a lifting height of 4.045 meters. It has a capacity of 0.75 tons at full forward reach and a center of gravity at 500 millimeters. The travel speed of the telehandler is 26 km/h. It has a capacity of 1.6 tons at full lift height. The transport width is 1.56 meters and the transport height is 1.8 meters.

516-40

Years of manufacture: 2014—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 516-40 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal load at COG: 1.6 t

Model series: 516

Centre of gravity: 500 mm

Standard tyres: 10.0/75-15.3

Transmission type: HY

Max. Reach horizontal: 2.535 m

Capacity at full forward reach: 0.75 t

Lifting height: 4.045 m

Capacity at full lift height: 1.6 t

Weight: 3.421 t

Transport length: 3.23 m

Transport width: 1.56 m

Transport height: 1.8 m

Travel speed: 26 km/h

Engine manuf.: Kohler

Engine type: KDW2204CHD

Engine power: 36.3 kW

Displacement: 2.199 l

Revolutions at max torque: 1500 rpm

Max. torque: 130 Nm

No. of cylinders: 4

Cylinder bore x stroke: 88x90.4 mm

Emission level: III A

More technical details, like: max. climbing ability, drive system, voltage, traction motor, hoist motor, travel speed with / without load, hoisting with / without load, lowering with load, dimension lxwxh, cab position, chassis type, levelling - chassis, stabilisers, drive - 2w / 4w, transmission type, attachment quickhitch, telematics available, platform, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - gross, torque, tyre - front size, tyre - rear size, tyre 2 - front size option, tyre 2 - rear size option, service brake - type, service brake - location, length - front of carriage, height - over cab, width - operating, wheelbase, ground clearance, width - cab, boom angle - maximum, lift height - maximum, reach - maximum, reach - at maximum lift height, reach - ground with maximum capacity, unstabilised lift height - with maximum capacity, turning radius - over tyres, lift capacity - maximum, lift capacity - to max height, lift capacity - to max reach, unstabilised lift capacity - maximum, unstabilised lift capacity - to max height, unstabilised lift capacity - to max reach, fuel tank, number of boom sections, lift capacity - fork maximum, raise time - boom, extend time - boom, speed - forward maximum, speed - reverse maximum, operating weight are available in the full technical specs.

All specifications and prices refer to basic models with standard fork carrier, 2 standard prongs, without additional hydraulic and shovel

Special equipment

Diesel particulate filter: No
StVZO Equipment: No
Inclination correction: No
Side displacement: No
