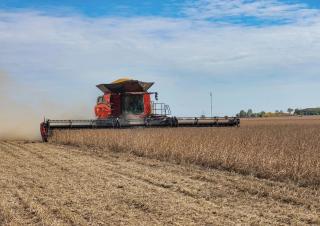

AF9 Case IH AF9 Specifications & Technical Data (2024—2026)

Engine power: 514kW – Model series: AF – Rotor Ø: 762mm – Grain tank size: 16000l – Weight: 23.65t – Transport height: 3.98m

AF9

Years of manufacture: 2024—2026

Data sheet
Valuate & Sell
Spare parts
Transport
News

Technical specs - AF9 Case IH

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power: 514 kW

Model series: AF

Rotor Ø: 762 mm

Grain tank size: 16000 l

Weight: 23.65 t

Transport height: 3.98 m

Engine manuf.: FPT

Engine type: Cursor 16

Emission level: V

More technical details, like: standard tyres, threshing system, walkers, steering, transmission type, transport length, transport width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model self-propelled motor incl. standard cutting is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin: Yes
Straw chopper: No
Stone Trap: No
Hillside levelling: No
Chaff spreader: No
Loss monitoring: No
Rollover protection: No
All-wheel drive: No
Aircondition: No

Download datasheets (PDF)

AF9 Case IH Specification for North America (EN)

Case IH AF9 FAQ

When was the Case IH AF9 combine harvester first produced?

The Case IH AF9 combine harvester was first produced in 2024.

What is the weight of the Case IH AF9 combine harvester?

The Case IH AF9 combine harvester weighs 23.65 tonnes.

What is the transport height of the Case IH AF9 combine harvester?

The Case IH AF9 has a transport height of 3.98 meters.

What is the engine power of the Case IH AF9 combine harvester?

The Case IH AF9 combine harvester has an engine power of 466 kW.

What is the grain tank volume capacity of the Case IH AF9 combine harvester?

The Case IH AF9 has a grain tank volume capacity of 16,000 liters.

What is the rotor diameter of the Case IH AF9 combine harvester?

The Case IH AF9 combine harvester has a rotor diameter of 762 millimeters.

How much is a Case IH AF9 Combine Harvester (2024u20132025) worth?

The residual value of the Case IH AF9 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
