Case IH Axial Flow 7240 Specifications & Technical Data (2015-2018)

Name: Case IH Axial Flow 7240 Combine Harvesters
Brand: Case IH

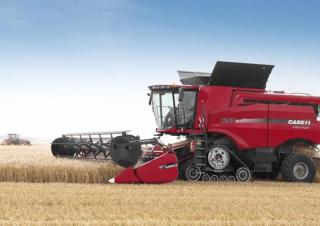

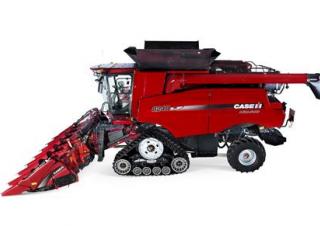

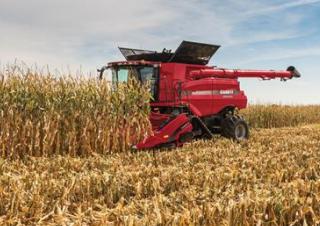

The Case IH Axial Flow 7240 is a combine harvester manufactured by Case IH from 2015 to 2018. It has a weight of 19 tons and is po…

The Case IH Axial Flow 7240 is a combine harvester manufactured by Case IH from 2015 to 2018. It has a weight of 19 tons and is powered by an engine with a power output of 366 kW. The combine harvester has a transport length of 8.05 meters, a transport width of 3.49 meters, and a transport height of 3.98 meters. It is equipped with a grain tank with a capacity of 11,100 liters and a rotor diameter of 649 mm. The machine also features special equipment including air conditioning, all-wheel drive, a cabin, a chaff spreader, a stone trap, and a straw chopper.

Combine Harvesters Case IH Axial Flow 7240

Axial Flow 7240

Years of manufacture: 2015—2018

Data sheet
Valuate & Sell
Spare parts
Transport
Events & News

Technical specs - Axial Flow 7240 Case IH

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power: 366 kW

Model series: Axial-Flow

Standard tyres: 710/70 R42

Threshing system: R

Rotor Ø: 649 mm

Grain tank size: 11100 l

Steering: HH

Transmission type: h

Weight: 19 t

Transport length: 8.05 m

Transport width: 3.49 m

Transport height: 3.98 m

Engine manuf.: Case IH

Engine type: Cursor 11

More technical details, like: walkers, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model self-propelled motor incl. standard cutting is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin: Yes
Straw chopper: Yes
Stone Trap: Yes
Hillside levelling: No
Chaff spreader: Yes
Loss monitoring: No
Rollover protection: No
All-wheel drive: Yes
Aircondition: Yes
