Laser 130 SAME Laser 130 Specifications & Technical Data (2018—2026)

The SAME Laser 130 is a 4-wheel drive tractor manufactured since 2018. It has a weight of 5.8 tons and is powered by an engine wit…

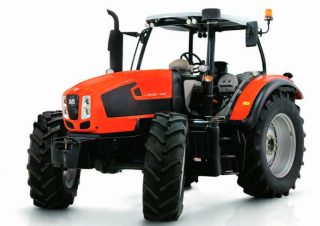

The SAME Laser 130 is a 4-wheel drive tractor manufactured since 2018. It has a weight of 5.8 tons and is powered by an engine with a capacity of 95 kW. The tractor has a transport length of 5.782 meters and can travel at a speed of 40 km/h. It has a transport width of 2.299 meters and a transport height of 3.005 meters. The tractor is equipped with special equipment such as air conditioning, a cabin, and a front PTO.

4WD Tractors SAME Laser 130

Technical specs - Laser 130 SAME

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
95 kW
Model series
Laser
Back tyres
460/85 R38
Front tyres
420/85 R28
Transport length
5.782 m
Transport width
2.299 m
Transport height
3.005 m
Travel speed
40 km/h
Transmission
12/12
Weight
5.8 t
Engine manuf.
Deutz
Engine type
2012 TCD 2V
Displacement
6.057 l
Max. torque
491 Nm
No. of cylinders
6
Emission level
III A

More technical details, like: transmission type, control unit, steering, three point category, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
Yes
Air brakes
No
ISO Bus
No
Aircondition
Yes

Download datasheets (PDF)

SAME Laser 130 FAQ

When was the SAME Laser 130 manufactured?

The SAME Laser 130 was first produced in 2018.

What is the weight of the SAME Laser 130 tractor?

The SAME Laser 130 tractor weighs 5.8 tonnes.

What are the transport dimensions of the SAME Laser 130 tractor?

The SAME Laser 130 tractor has a transport length of 5.78 meters, a transport width of 2.3 meters, and a transport height of 3.01 meters.

What is the engine power of the SAME Laser 130?

The SAME Laser 130 has an engine power of 95 kW.

What is the travel speed of the SAME Laser 130?

The SAME Laser 130 has a travel speed of 40 km/h.

What are the wheel and tyre specifications of the SAME Laser 130?

The SAME Laser 130 has front tyres sized 420/85 R28 and back tyres sized 460/85 R38.

How much is a SAME Laser 130 4WD Tractor (2018u20132025) worth?

The residual value of the SAME Laser 130 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

SAME Laser 130 overview

Engine & Transmission

SAME Laser Stage III A Models

The SAME Laser Stage III A range includes four models, from 130 to 180 HP. Available with a cab or with a 4-pillar ROPS, they feature the Deutz TCD 2012 L06 2V 6-cylinder engine, with an electronically controlled Common Rail (DCR) system. The transmission is equipped with electro-hydraulic front wheel drive engagement and 100% differential lock. The transmission can optionally be increased up to 24+12 with the splitter. The hydraulic system has a pump capacity of 94 l/min (131 l/min as an option) while an additional 43 l/min pump controls the power steering. The rear lift has a capacity of 6850 kg (8600 kg as an option). The electrohydraulically controlled PTO is available in two combinations: 540/1000 or 540E/1000.
