Iron 135 DCR 4V SAME Iron 135 DCR 4V Specifications & Technical Data (2010—2012)

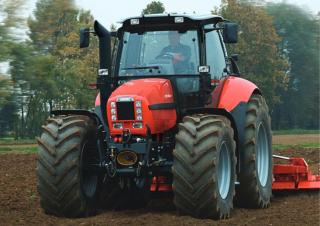

The SAME Iron 135 DCR 4V is a 4-wheel drive tractor manufactured by SAME from 2010 to 2012. It has a weight of 5.46 tons and is po…

The SAME Iron 135 DCR 4V is a 4-wheel drive tractor manufactured by SAME from 2010 to 2012. It has a weight of 5.46 tons and is powered by an engine with a capacity of 98 kW. The tractor has a transport length of 4.59 meters and can travel at a speed of 40 km/h. It has a transport width of 2.31 meters and a transport height of 2.92 meters. The tractor is equipped with special equipment such as air conditioning and a cabin.

4WD Tractors SAME Iron 135 DCR 4V

Technical specs - Iron 135 DCR 4V SAME

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
98 kW
Model series
Iron
Back tyres
18.4 R 38
Front tyres
16.9 R 24
Transport length
4.59 m
Transport width
2.31 m
Transport height
2.92 m
Travel speed
40 km/h
Transmission
24/24
Weight
5.46 t
Control unit
-/4 ew/dw
Engine manuf.
Deutz
Engine type
TCD2012 L04

More technical details, like: transmission type, steering, three point category, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
Yes

Download datasheets (PDF)

SAME Iron 135 DCR 4V FAQ

When was the SAME Iron 135 DCR 4V from the Iron series manufactured?

The SAME Iron 135 DCR 4V from the Iron series was manufactured from 2010 to 2012.

What is the weight of the SAME Iron 135 DCR 4V?

The SAME Iron 135 DCR 4V weighs 5.46 tonnes.

What are the physical dimensions of the SAME Iron 135 DCR 4V?

The SAME Iron 135 DCR 4V has a transport length of 4.59 meters, a transport width of 2.31 meters, and a transport height of 2.92 meters.

What is the engine power of the SAME Iron 135 DCR 4V?

The SAME Iron 135 DCR 4V has an engine power of 98 kW.

What is the travel speed of the SAME Iron 135 DCR 4V?

The SAME Iron 135 DCR 4V has a travel speed of 40 km/h.

What are the transmission speeds for the SAME Iron 135 DCR 4V?

The SAME Iron 135 DCR 4V has a transmission with 24 forward speeds and 24 reverse speeds.

What are the wheel and tyre specifications of the SAME Iron 135 DCR 4V?

The SAME Iron 135 DCR 4V has back tyres sized 18.4 R 38 and front tyres sized 16.9 R 24.

How much is a SAME Iron 135 DCR 4V 4WD Tractor (2010u20132012) worth?

The residual value of the SAME Iron 135 DCR 4V depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
