Frutteto S 105 SAME Frutteto S 105 Specifications & Technical Data (2017—2023)

The SAME Frutteto S 105 is a 4 wheel drive tractor manufactured by SAME since 2017. It has a weight of 3.125 tons and is equipped …

The SAME Frutteto S 105 is a 4 wheel drive tractor manufactured by SAME since 2017. It has a weight of 3.125 tons and is equipped with a 75 kW engine. The tractor has a transport length of 3.942 meters and a travel speed of 40 km/h. It has a transport width of 1.618 meters and a transport height of 2.346 meters. The Frutteto S 105 comes with 2 control units (ew/dw) and special equipment includes a cabin.

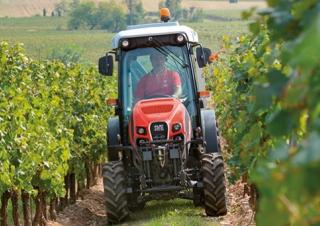

4WD Tractors SAME Frutteto S 105
4WD Tractors SAME Frutteto S 105
4WD Tractors SAME Frutteto S 105
4WD Tractors SAME Frutteto S 105
4WD Tractors SAME Frutteto S 105
4WD Tractors SAME Frutteto S 105

Technical specs - Frutteto S 105 SAME

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
75 kW
Model series
Fruttero
Back tyres
360/70 R24
Front tyres
240/70 R16
Transport length
3.942 m
Transport width
1.618 m
Transport height
2.346 m
Travel speed
40 km/h
Transmission
45/45
Transmission type
m
Weight
3.125 t
Control unit
2 ew/dw
Steering
h
three point category
2
Engine manuf.
SDF
Engine type
FARMotion
Displacement
3.849 l
Revolutions at max torque
2200 rpm
No. of cylinders
4
Emission level
III B (Tier 4 i)

More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
No

Download datasheets (PDF)

SAME Frutteto S 105 FAQ

When was the SAME Frutteto S 105 manufactured and what is its model series?

The SAME Frutteto S 105 has been produced since 2017 and belongs to the Fruttero model series.

What is the weight of the SAME Frutteto S 105?

The SAME Frutteto S 105 has a weight of 3.13 tonnes.

What are the transport dimensions of the SAME Frutteto S 105?

The SAME Frutteto S 105 has a transport length of 3.94 meters, a transport width of 1.62 meters, and a transport height of 2.35 meters.

What is the engine power of the SAME Frutteto S 105?

The SAME Frutteto S 105 has an engine power of 75 kW.

What is the travel speed of the SAME Frutteto S 105?

The SAME Frutteto S 105 has a travel speed of 40 km/h.

What are the drivetrain and propulsion system specifications of the SAME Frutteto S 105?

The SAME Frutteto S 105 has a mechanical transmission with 45 forward speeds and 45 reverse speeds.

What type of steering system does the SAME Frutteto S 105 have?

The SAME Frutteto S 105 is equipped with a hydraulic steering system.

What are the wheel and tyre specifications of the SAME Frutteto S 105?

The SAME Frutteto S 105 has back tyres sized 360/70 R24 and front tyres sized 240/70 R16.

What is the three-point hitch category of the SAME Frutteto S 105?

The SAME Frutteto S 105 has a category 2 three-point hitch.
