Fortis 160.4 Infinity SAME Fortis 160.4 Infinity Specifications & Technical Data (2015—2017)

The SAME Fortis 160.4 Infinity is a 4-wheel drive tractor manufactured by SAME from 2015 to 2017. It has a weight of 5.68 tons and…

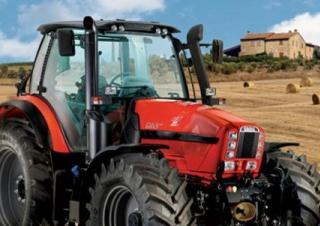

The SAME Fortis 160.4 Infinity is a 4-wheel drive tractor manufactured by SAME from 2015 to 2017. It has a weight of 5.68 tons and is powered by an engine with a power output of 122 kW. The tractor has a transport length of 4.36 meters and a travel speed of 50 km/h. It has a transport width of 2.54 meters and a transport height of 3.05 meters. The tractor is equipped with a control unit with 4 functions and special equipment including air brakes, air conditioning, and a cabin.

4WD Tractors SAME Fortis 160.4 Infinity

Technical specs - Fortis 160.4 Infinity SAME

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
122 kW
Model series
Fortis
Back tyres
20.8 R38
Front tyres
16.9 R28
Transport length
4.36 m
Transport width
2.54 m
Transport height
3.05 m
Travel speed
50 km/h
Transmission
40/40
Transmission type
LS
Weight
5.68 t
Control unit
4 ew/dw
Engine manuf.
Deutz
Engine type
TCD4.1 L04
Displacement
4.038 l
Revolutions at max torque
2000 rpm
No. of cylinders
4
Emission level
Tier 4 i

More technical details, like: steering, three point category, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
No
Air brakes
Yes
ISO Bus
No
Aircondition
Yes

SAME Fortis 160.4 Infinity FAQ

When was the SAME Fortis 160.4 Infinity manufactured?

The SAME Fortis 160.4 Infinity was manufactured from 2015 to 2017.

What is the weight of the SAME Fortis 160.4 Infinity?

The SAME Fortis 160.4 Infinity has a weight of 5.68 tonnes.

What are the transport dimensions of the SAME Fortis 160.4 Infinity?

The SAME Fortis 160.4 Infinity has a transport length of 4.36 meters, a transport width of 2.54 meters, and a transport height of 3.05 meters.

What is the engine power of the SAME Fortis 160.4 Infinity?

The SAME Fortis 160.4 Infinity has an engine power of 122 kW.

What is the travel speed of the SAME Fortis 160.4 Infinity?

The SAME Fortis 160.4 Infinity has a travel speed of 50 km/h.

What are the drivetrain and transmission specifications of the SAME Fortis 160.4 Infinity?

The SAME Fortis 160.4 Infinity features a powershift transmission with 40 forward and 40 reverse speeds.

What are the wheel and tyre specifications of the SAME Fortis 160.4 Infinity?

The SAME Fortis 160.4 Infinity has front tyres sized 16.9 R28 and back tyres sized 20.8 R38.
