Explorer 90 MD SAME Explorer 90 MD Specifications & Technical Data (2015—2019)

The SAME Explorer 90 MD is a 4-wheel drive tractor manufactured by SAME from 2015 to 2019. It has a weight of 3.62 tons and is equ…

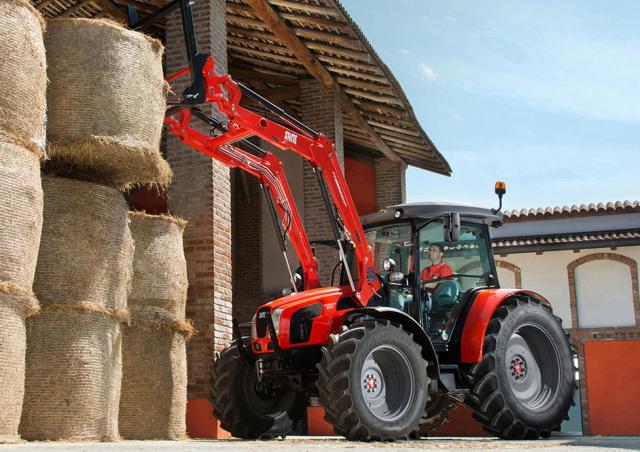

The SAME Explorer 90 MD is a 4-wheel drive tractor manufactured by SAME from 2015 to 2019. It has a weight of 3.62 tons and is equipped with a 65 kW engine. The tractor has a transport length of 4.13 meters and a travel speed of 40 km/h. It has a transport width of 2.365 meters and a transport height of 2.702 meters. The special equipment included with this tractor is a cabin.

4WD Tractors SAME Explorer 90 MD

Technical specs - Explorer 90 MD SAME

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
65 kW
Model series
Explorer
Back tyres
16.9 R34
Front tyres
14.9 R24
Transport length
4.13 m
Transport width
2.365 m
Transport height
2.702 m
Travel speed
40 km/h
Transmission
20/20
Transmission type
LS
Weight
3.62 t
Control unit
-/2 ew/dw
Steering
h
Engine manuf.
SDF
Engine type
FARMotion
Displacement
2.887 l
Revolutions at max torque
2200 rpm
No. of cylinders
3
Emission level
Tier 4 f

More technical details, like: three point category, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
No

Download datasheets (PDF)

SAME Explorer 90 MD FAQ

When was the SAME Explorer 90 MD manufactured?

The SAME Explorer 90 MD was manufactured from 2015 to 2019.

What is the weight of the SAME Explorer 90 MD?

The SAME Explorer 90 MD has a weight of 3.62 tonnes.

What are the transport dimensions of the SAME Explorer 90 MD?

The SAME Explorer 90 MD has a transport length of 4.13 meters, a transport width of 2.37 meters, and a transport height of 2.7 meters.

What is the engine power of the SAME Explorer 90 MD?

The SAME Explorer 90 MD has an engine power of 65 kW.

What is the travel speed of the SAME Explorer 90 MD?

The SAME Explorer 90 MD has a travel speed of 40 km/h.

What are the drivetrain and propulsion system specifications of the SAME Explorer 90 MD?

The SAME Explorer 90 MD has a powershift transmission with 20 forward speeds and 20 reverse speeds.

What type of steering does the SAME Explorer 90 MD have?

The SAME Explorer 90 MD has hydraulic steering.

What are the wheel and tyre specifications of the SAME Explorer 90 MD?

The SAME Explorer 90 MD has front tyres sized 14.9 R24 and back tyres sized 16.9 R34.

How much is a SAME Explorer 90 MD 4WD Tractor (2015u20132019) worth?

The residual value of the SAME Explorer 90 MD depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
