SAME Explorer 90 LD Specifications & Technical Data (2020-2025)

The SAME Explorer 90 LD is a 4-wheel drive tractor manufactured by SAME since 2020. It has a weight of 3.62 tons and is powered by…

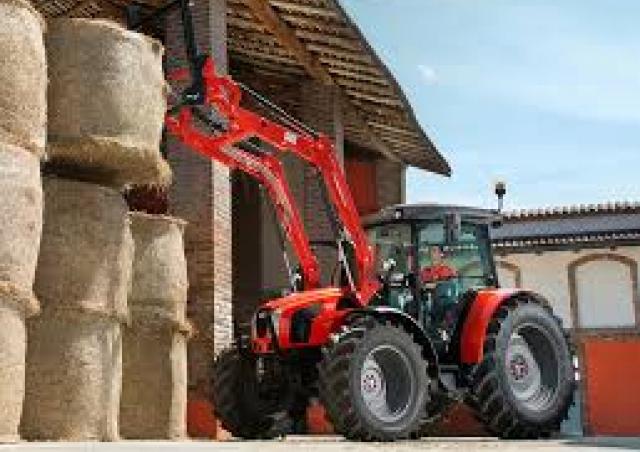

The SAME Explorer 90 LD is a 4-wheel drive tractor manufactured by SAME since 2020. It has a weight of 3.62 tons and is powered by an engine with a capacity of 65 kW. The tractor has a transport length of 4.1 meters and can travel at a speed of 40 km/h. It has a transport width of 2.341 meters and a transport height of 2.6 meters. The tractor is equipped with a cabin as special equipment.

Explorer 90 LD

Years of manufacture: 2020—2025

Buy & Rent
Valuate & Sell
Spare parts
Transport
Events & News

Technical specs - Explorer 90 LD SAME

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power: 65 kW

Model series: Explorer

Back tyres: 420/70 R30

Front tyres: 360/70 R20

Transport length: 4.1 m

Transport width: 2.341 m

Transport height: 2.6 m

Travel speed: 40 km/h

Transmission: 20/20

Transmission type: LS

Weight: 3.62 t

Control unit: -/2 ew/dw

Steering: h

Engine manuf.: SDF

Engine type: FARMotion

Displacement: 2.887 l

Revolutions at max torque: 2200 rpm

No. of cylinders: 3

Emission level: Tier 4 f

More technical details, like: three point category, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin: Yes
Front hydraulics: No
Front PTO: No
Air brakes: No
ISO Bus: No
Aircondition: No

FAQ

What is the weight of SAME Explorer 90 LD?

The weight of SAME Explorer 90 LD is 3.62 tons.

What is the size of the SAME Explorer 90 LD 4WD tractor?

The SAME Explorer 90 LD 4WD tractor has dimensions of 2.34 meters in width, 2.6 meters in height, and 4.1 meters in length.

What engine does the SAME Explorer 90 LD 4WD tractor have?

The SAME Explorer 90 LD 4WD tractor is equipped with an SDF FARMotion engine that has 88 kW of power, a 2.89-liter displacement, 2200 rpm at max torque, and 3 cylinders.

How much is SAME Explorer 90 LD (2020 - 2024) worth?

The residual value of SAME Explorer 90 LD depends on machine's individual parameters. Visit LECTURA Valuation to check it.
